Seiko (TMI) NH34 Automatic Movement - GMT Date (White)

Name: Seiko (TMI) NH34 Automatic Movement - GMT Date (White)
Brand: SEIKO
SKU: NH34_Reg.
Price: 240.0 SGD
Availability: InStock
Rating: 4.64 (11 reviews)

.price-ui--loading { display: block !important; opacity: 1 !important; }

$190 SGD - $240 SGD

See It On A Watch

Worldwide
Delivery Express
2–4 Days Replies In
1 Day 30-Day
Returns

The affordable automatic GMT.

Genuine Seiko NH34 automatic movement with a true GMT complication plus date, crown at 3 o'clock, with white date wheel. The NH34 is the only affordably-priced automatic GMT movement Seiko makes, which is why it's the go-to engine for a modded travel watch. It drives a fourth, 24-hour hand for tracking a second time zone.

Two accuracy grades. One genuine Seiko caliber, QC-passed by TMI.
Pick Regulated for watchmaker-tuned precision, or Non-Regulated for Seiko factory spec. Every unit is a genuine Time Module Inc. movement, tested functional before it ships.

A real GMT complication.
An independent 24-hour hand tracks a second time zone. Set the home/reference time on the 24-hour hand and read a second zone off the main hands, or the reverse. The affordable way into a modded GMT build.

Regulated or non-regulated.
Choose Regulated and a certified watchmaker tunes it to 0 to +8 seconds/day before it ships. Choose Non-Regulated for factory-default accuracy of -20 to +40 seconds/day per Seiko's spec. Same movement, your call on precision.

Hacking and hand-winding.
Both built in. The seconds hand stops when you pull the crown for precise time-setting, and you can manually wind it. The popular reason modders upgrade from older 7S26/7S36 calibers.

Ships with a dial washer.
Unique to the NH34: a dial washer comes installed to support the dial and keep it clear of the GMT gear train sitting on top of the movement. If it ever drops out, refit it in a 'U' orientation. Also includes a full-length threaded stem and a dummy stem with plastic crown.

How the NH family compares

Caliber	Complication	Crown Position	Version
NH34 · THIS MOVEMENT	GMT + Date	3 or 4 o'clock	White
NH35	Date	3 or 4 o'clock	Black White
NH35	Date · 6 o'clock dial	3 or 4 o'clock	Black White
NH36	Day + Date	3 o'clock only	Black White
NH36	Day + Date	4 o'clock only	Black White
NH38	Open Heart (no date)	3 or 4 o'clock	View
NH70 / 71 / 72	Skeleton (no date)	3 or 4 o'clock	NH72

Most NH movements fit either a 3 or 4 o'clock crown — the stem threads either way and the date disc isn't affected. The NH36 is the exception: its day wheel is pre-aligned for one crown position, so pick the standard (3 o'clock) or the 4 o'clock version to match your case. Every caliber shares the same 24-jewel automatic platform, 21,600 vph beat rate, and 41+ hour power reserve. Click any version to go straight to that product.

For experienced modders only

Movement swapping is recommended only for individuals with the right skills and experience. Every movement passes Time Module Inc. (TMI) quality control before shipping and is guaranteed fully functional on arrival. Given the DIY nature of modding and Seiko's trade practices, movements cannot be returned once shipped. We are not responsible for damage incurred during fitting.

Specs
Compatibility
What's Included
How To Mod

1. Manufacturer Time Module Inc. (TMI)
2. Caliber NH34A
3. Movement Type Automatic, Mechanical
4. Hand Height Type M
5. Movement Diameter 27.40mm
6. Casing Diameter 29.36mm (with dial holding spacer)
7. Movement Height 5.32mm
8. Jewels 24 jewels
9. Beats Per Hour 21,600 vph (6 vibrations per second)
10. Additional Function 24-Hour (GMT), Date display
11. Hacking Yes
12. Manual Winding Yes
13. Winding Direction Clockwise
14. Power Reserve More than 41 hours

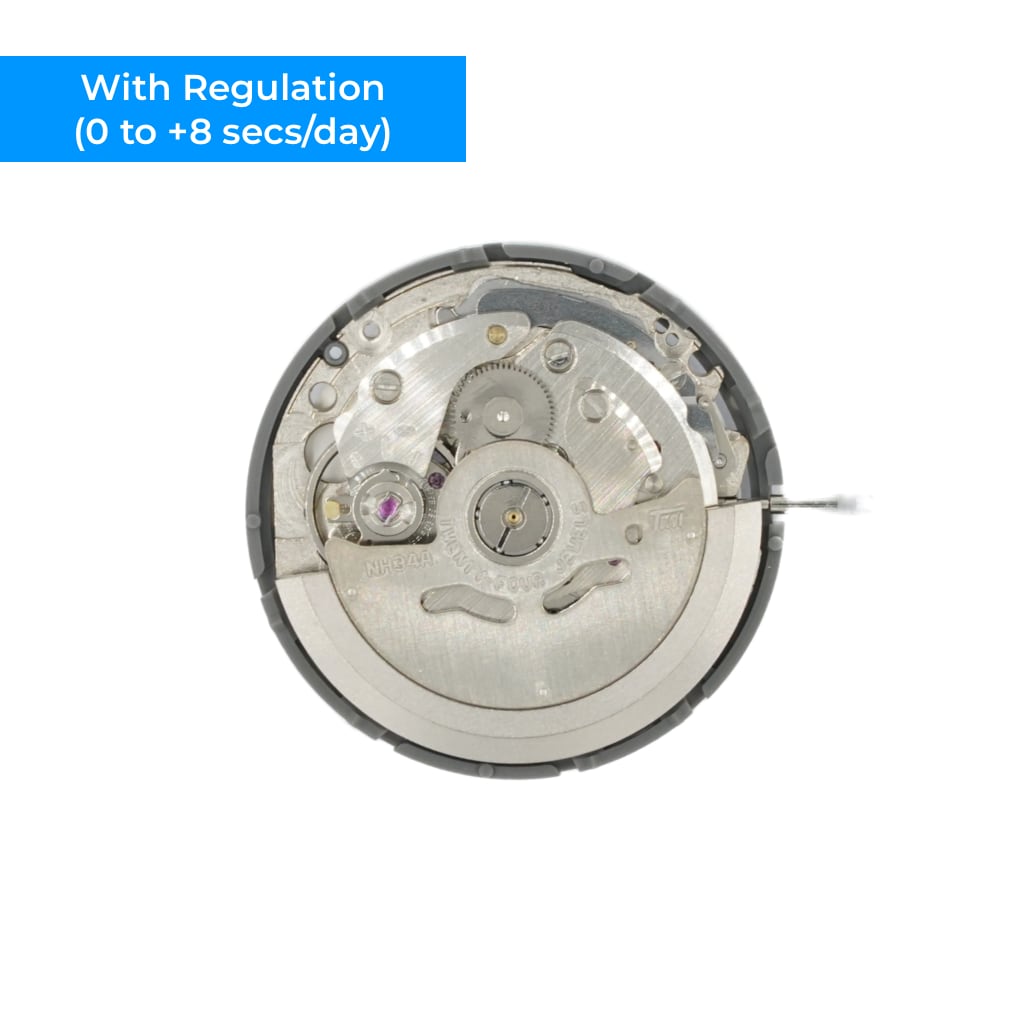

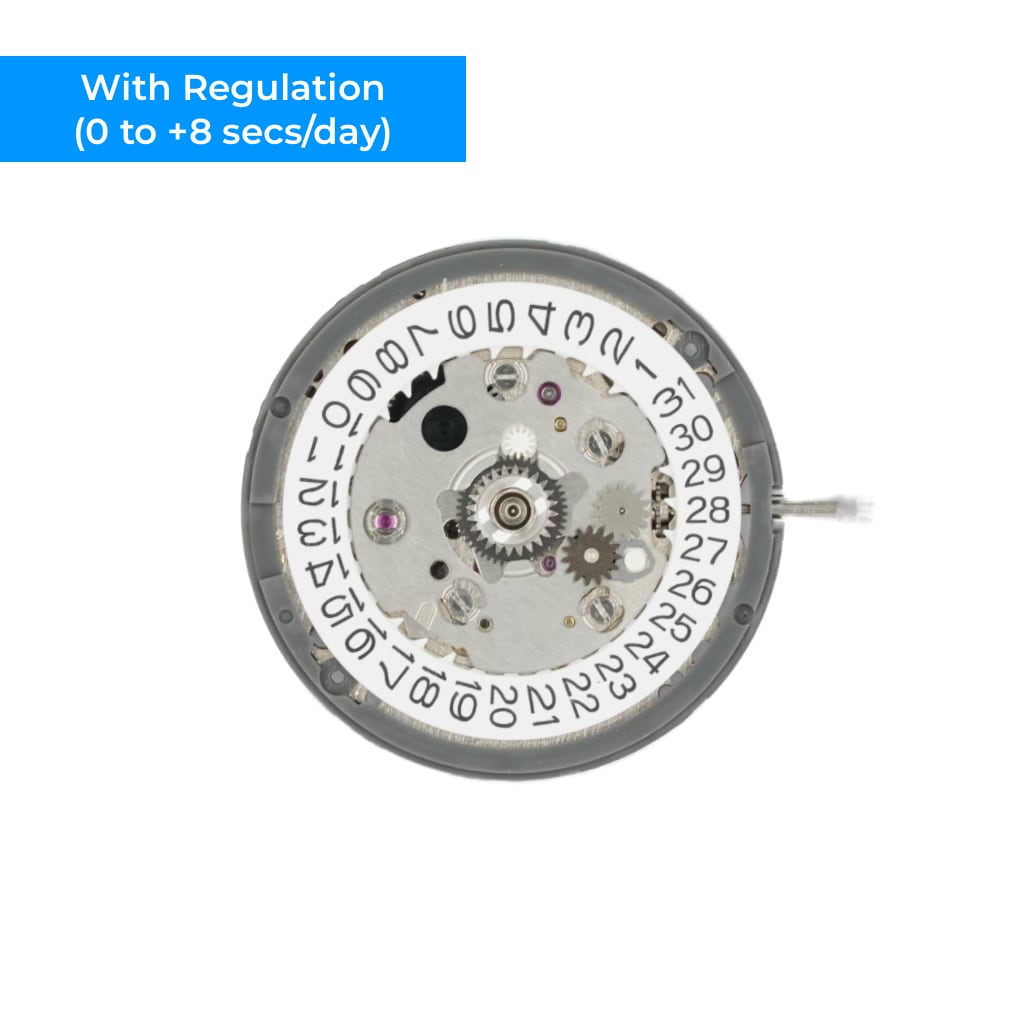

15. Accuracy (Regulated) 0 to +8 seconds/day
16. Accuracy (Non-Regulated) -20 to +40 seconds/day
17. Hands Fitting Size 24H: 2.2mm, H: 1.5mm, M: 0.88mm, S: 0.2mm
Where this movement fits
1. Hand height Type M (standard) — confirm your case accepts Type M before fitting
2. Our cases Pilot 34, 1908 36, 62GS 36 (GMT-ready cases)
3. Dial 28.5mm Seiko Mod dials — match the date aperture to the movement
4. Hands NH-series compatible
The NH34's GMT gear train sits proud of the movement, so it needs cases and dials built to clear it. On our range, the NH34 is supported by the Pilot 34, 1908 36, and 62GS 36 cases. Pair it with a GMT or 24-hour dial to use the complication.
1. 1x NH34 movement (dial washer pre-installed)
2. 1x Full-length threaded stem
3. 1x Dummy stem with plastic crown
All photos showing movements fitted with dials, hands, or cases are for illustration only and are not included with the movement purchase.

Does the NH34 give a true GMT, or just a 24-hour hand?

A true independent GMT. The NH34 drives a fourth, 24-hour hand you can set independently to track a second time zone. It's the only automatic GMT movement Seiko makes at this price, which is why it's the go-to for a modded travel watch.

What is the dial washer on the NH34 for?

The dial washer is unique to the NH34. It supports the dial and keeps it clear of the GMT gear train that sits on top of the movement. It comes pre-installed; if it ever drops out, refit it in a 'U' orientation before seating the dial.

Which cases and dials does the NH34 need?

The NH34 is supported right across the range. Ultra Thin Edition: Pilot 34, 1908 36 (steel and yellow gold) and 62GS 36. GS and Explorer: GS Diver 36, GS 39mm v2 and Explorer II 36. SKX013 range: SKX013 Watch Case 38, SKX013 Submariner 36 and SKX013 GS Diver 36 — each also available in DLC black. Pair it with a GMT or 24-hour dial cut for the NH34's wider 2.7mm centre hole, so the 24-hour pinion passes through and the hand clears.

The GS 36 v2 and GS Diver 36 can run an NH34 — the double-dome sapphire gives the 24-hour hand stack enough headroom. The catch is the second hand: too long and it touches the crystal, so plan a shorter second hand or use a second-hand cap.

What's the difference between Regulated and Non-Regulated?

Regulated movements are tuned by a certified watchmaker to 0 to +8 seconds per day before they ship. Non-Regulated movements run at Seiko's factory-default accuracy of -20 to +40 seconds per day. It's the same movement either way — Regulated just buys you tighter timekeeping out of the box.

Is this a Type M or Type L movement, and does it matter?

This is a Type M movement. Type M and Type L are Seiko's two factory hand-fitting heights; Type L sits about 0.4mm taller. Ultra Thin Edition cases have tight hand-to-sapphire clearance, so they take Type M only. Always confirm Type M before fitting.

Can I return a movement if my mod doesn't work out?

Movements can't be returned once shipped. Given the DIY nature of modding and Seiko's trade practices, all movement sales are final. Every unit passes TMI quality control and is guaranteed fully functional on arrival — but the fitting itself is at your own risk, so this movement is recommended for experienced modders only.

NH34 vs NH35 vs NH36 vs NH38 vs NH70 — what is the actual difference?

They are the same movement — only the complication differs. Every one: 24 jewels, −20 to +40 sec/day, 21,600 vph, 41h power reserve, casing Ø29.36mm with the spacer.

| Movement | Shows |
|---|---|
| **NH34** | Date + GMT |
| **NH35** | Date |
| **NH36** | Day date |
| **NH38** | Open Heart |
| **NH70/71/72** | Skeleton |

All of them hack (the seconds hand stops while you set). On the NH38 and the NH70 family the crown has one click and it sets the time, so a no-date dial belongs on an NH38 — there is no empty date position to pull past.

Only the height differs: 7.59mm installed, 7.99mm for the NH34. That extra 0.4mm of hand stack is why a GMT needs a case built for it. Otherwise the family is interchangeable — you are choosing a dial and a crown behaviour, not a different-sized engine.

This GMT automatic movement is highly praised by watch modders for its accuracy and ease of use. Customers said the regulated version is "within 1-3 seconds daily" with "peak performance." Most found it "easy to work with" for builds. However, one instance of failure after 1 week was reported. Overall, customers appreciate the quality and fast delivery.

WOW is it accurate! Within 1-3 seconds daily. That is peak performance from my point of view.
This movement was so easy to work with through this build!
Excellent quality and packaging was unbelievable! Very quick delivery.

Build (positive)Regulation (positive)Delivery (positive)Quality (positive)Movement (positive)

5 stars: 10 (91%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 1 (9%)

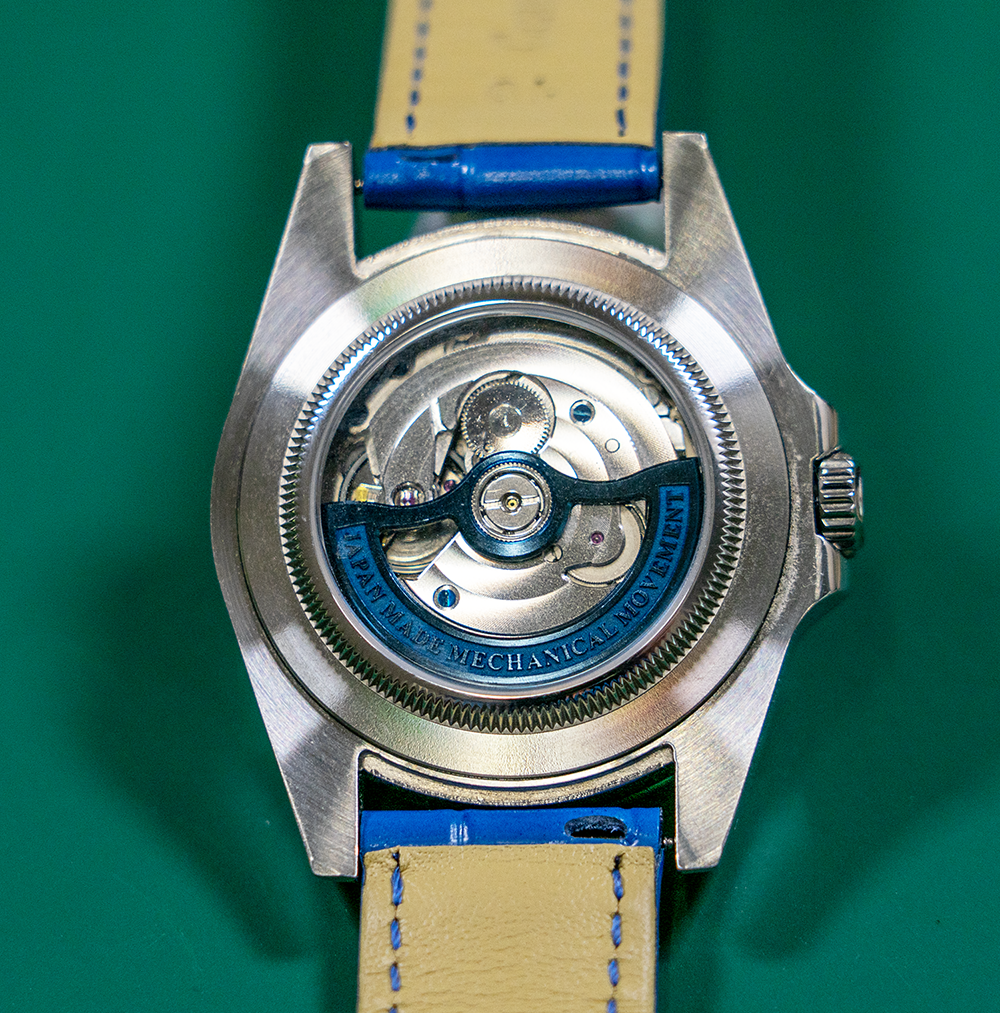

Using this mod part for: 39mm GS case

NH34 Movement

This NH34 movement was so easy to work with through this build!

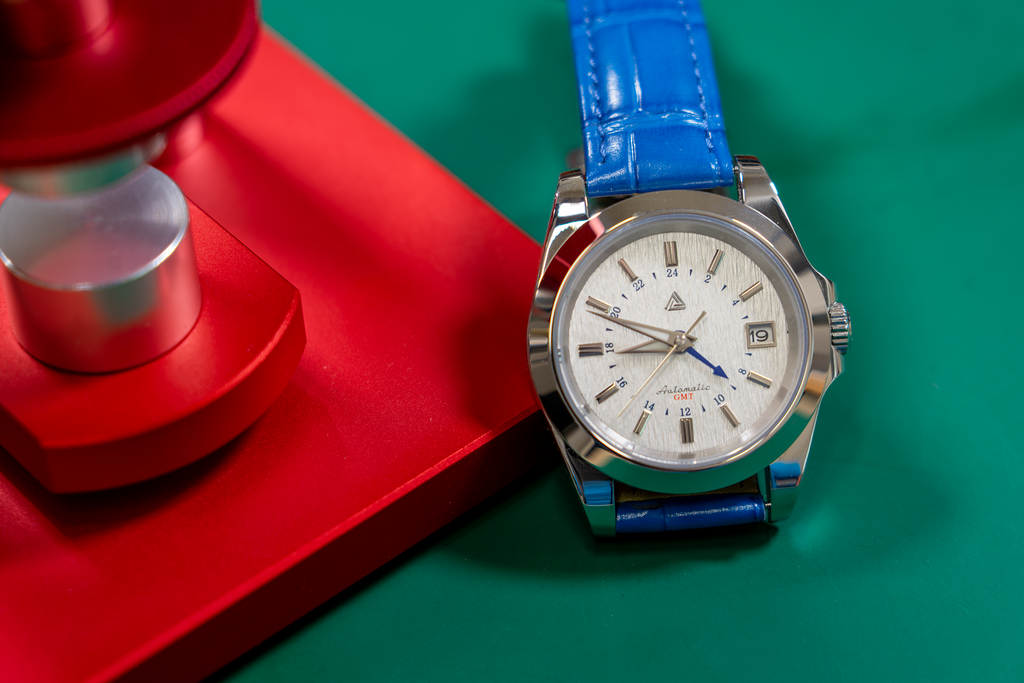

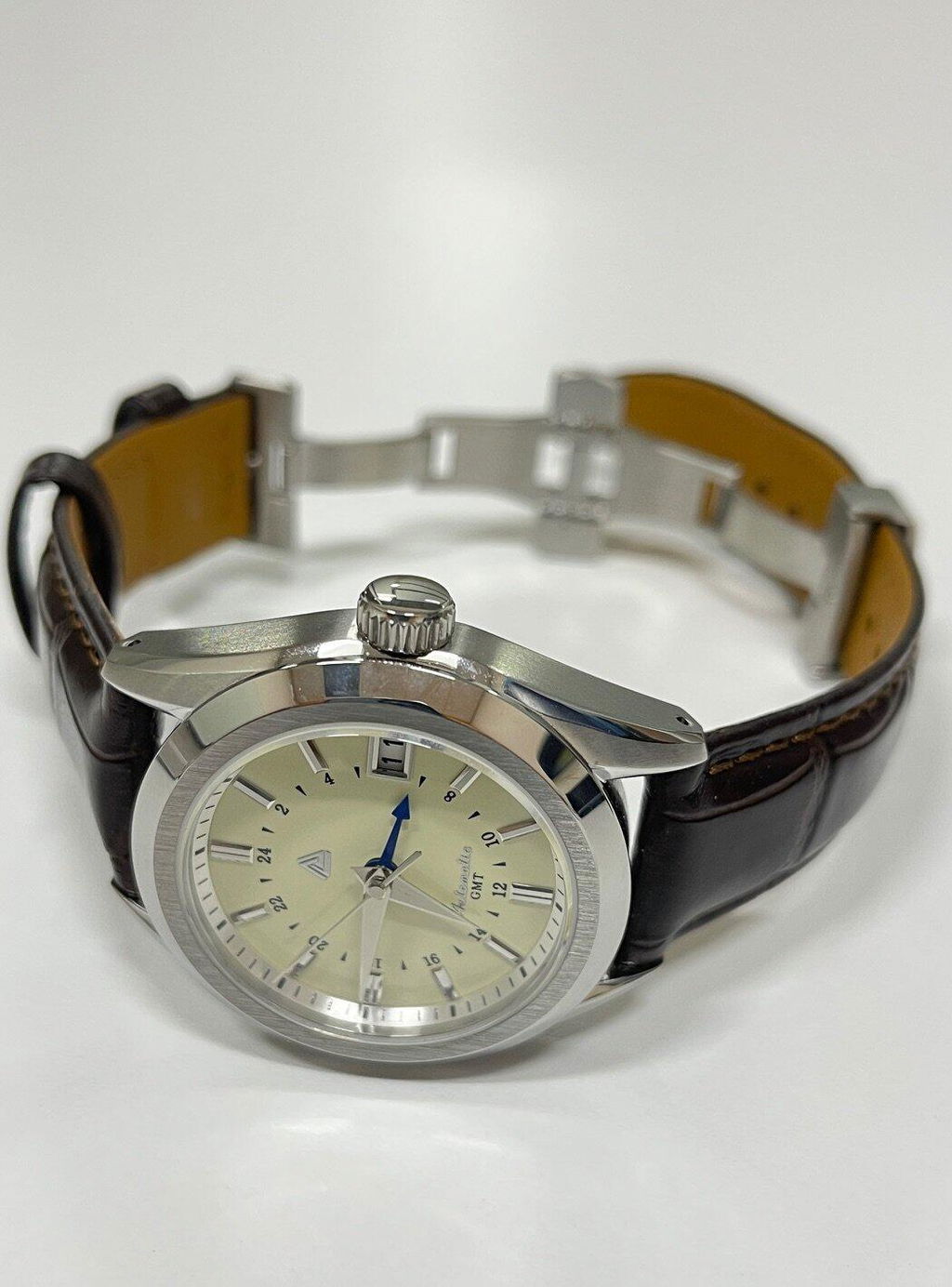

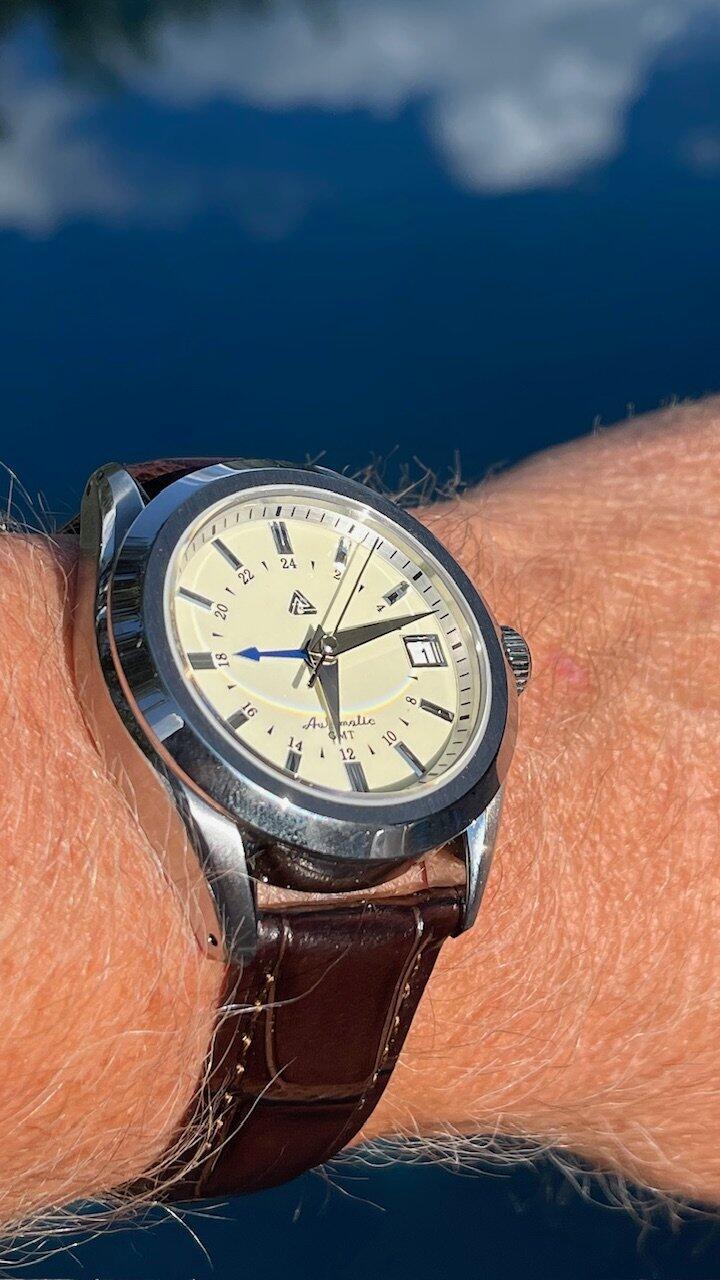

Using this mod part for: Hommage to a GS elegance.

Great movement.

For a new GMT build I purchased this regulated NH34 movement.

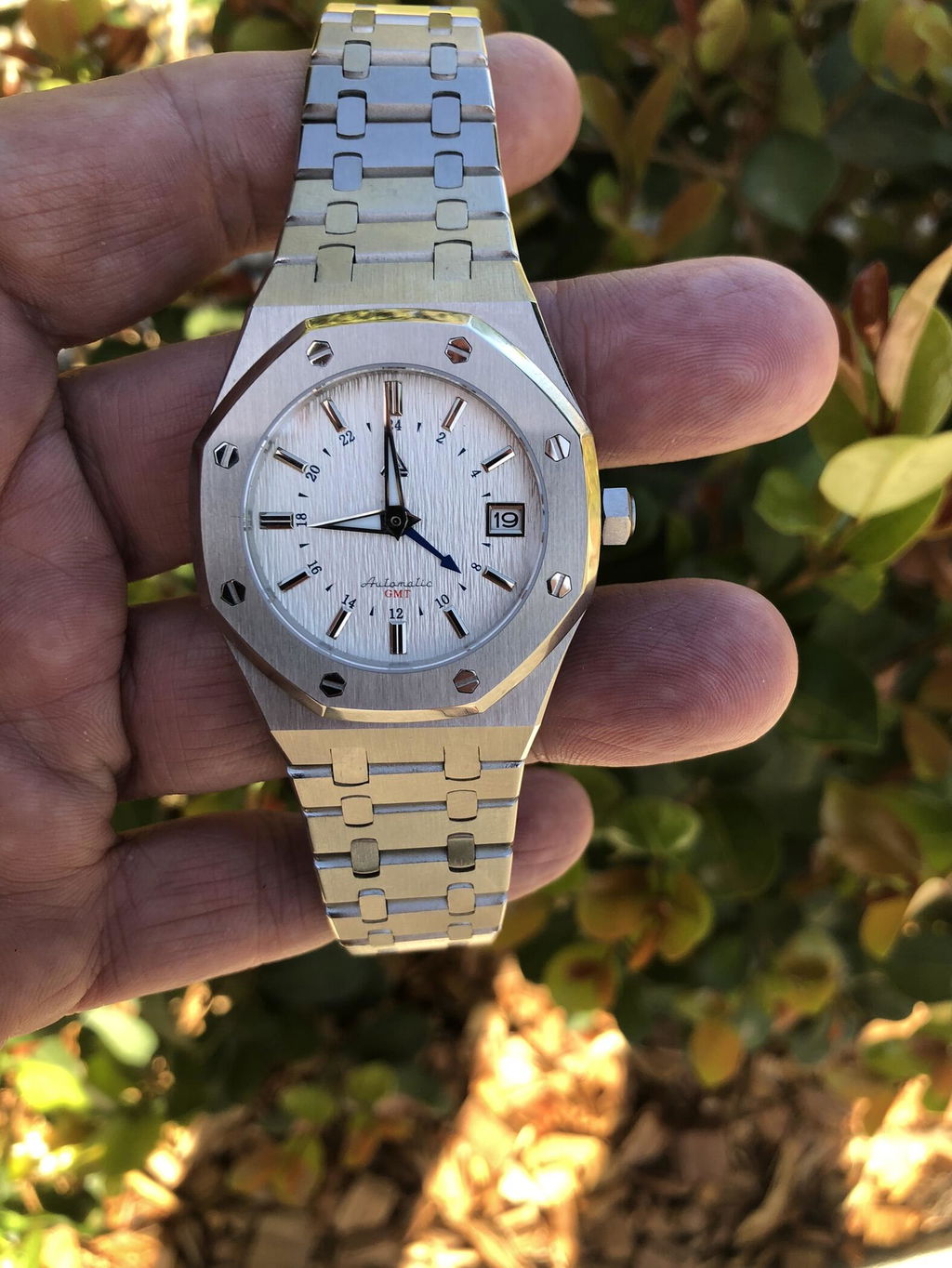

Using this mod part for: AP oak, with a difference

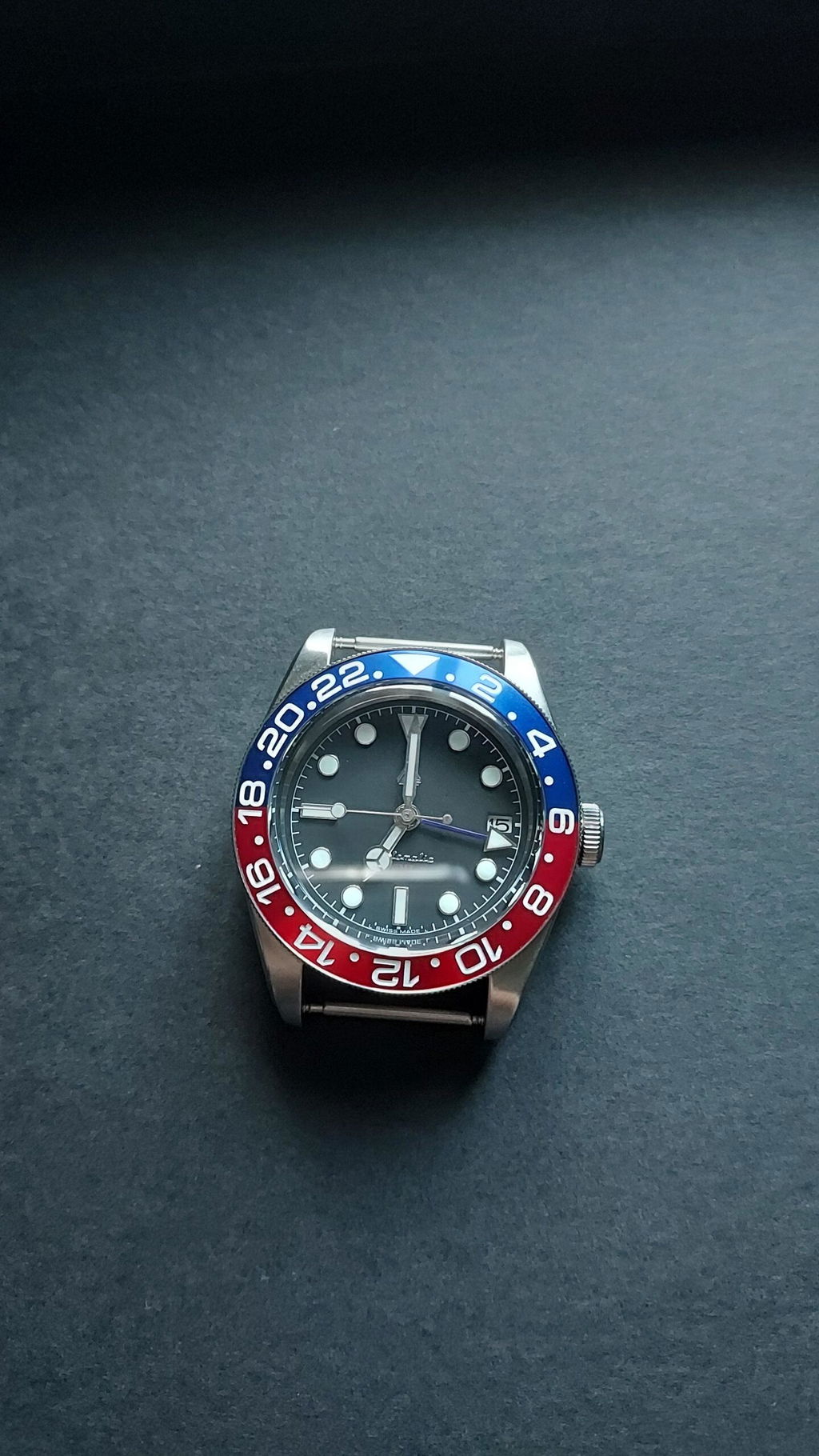

New build in the process

Parts arrived super fast !!.
High quality, and exactly as described….I will be a returning customer

Using this mod part for: Aftermarket

Runs brilliantly and well within reg.

Not much to say about it. Runs well and functions correctly, gained around +4 seconds in a day well within the regulation so I'm overall very happy
ATTTW5 - 5% off (Not including Seiko Movements, Bergeon tools & Watchmaking Kits)
Check the insta (now allthetimemods) for more, thank you

Regulated NH34

Great movement and easy to use! Only gained 12 seconds in the past 5 days with the regulated movement.

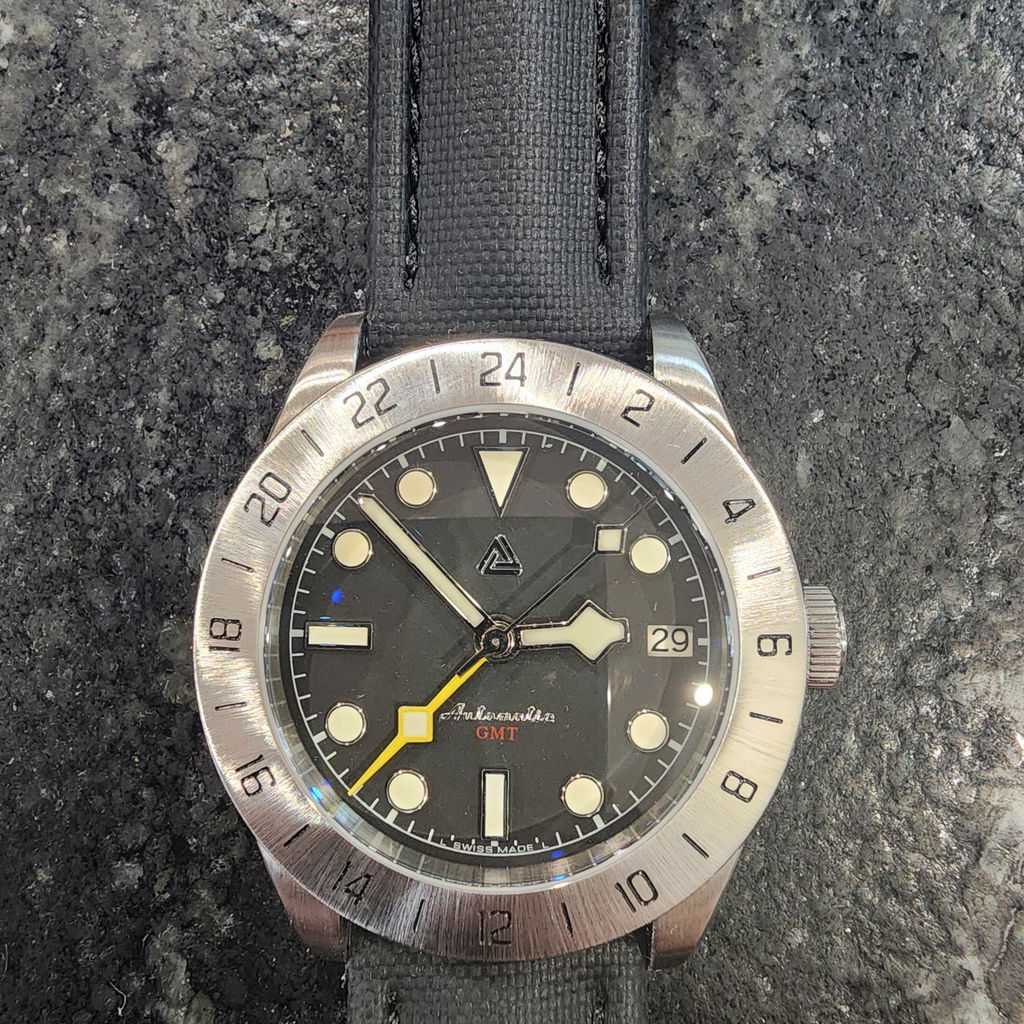

Using this mod part for: SKX Aftermarket case

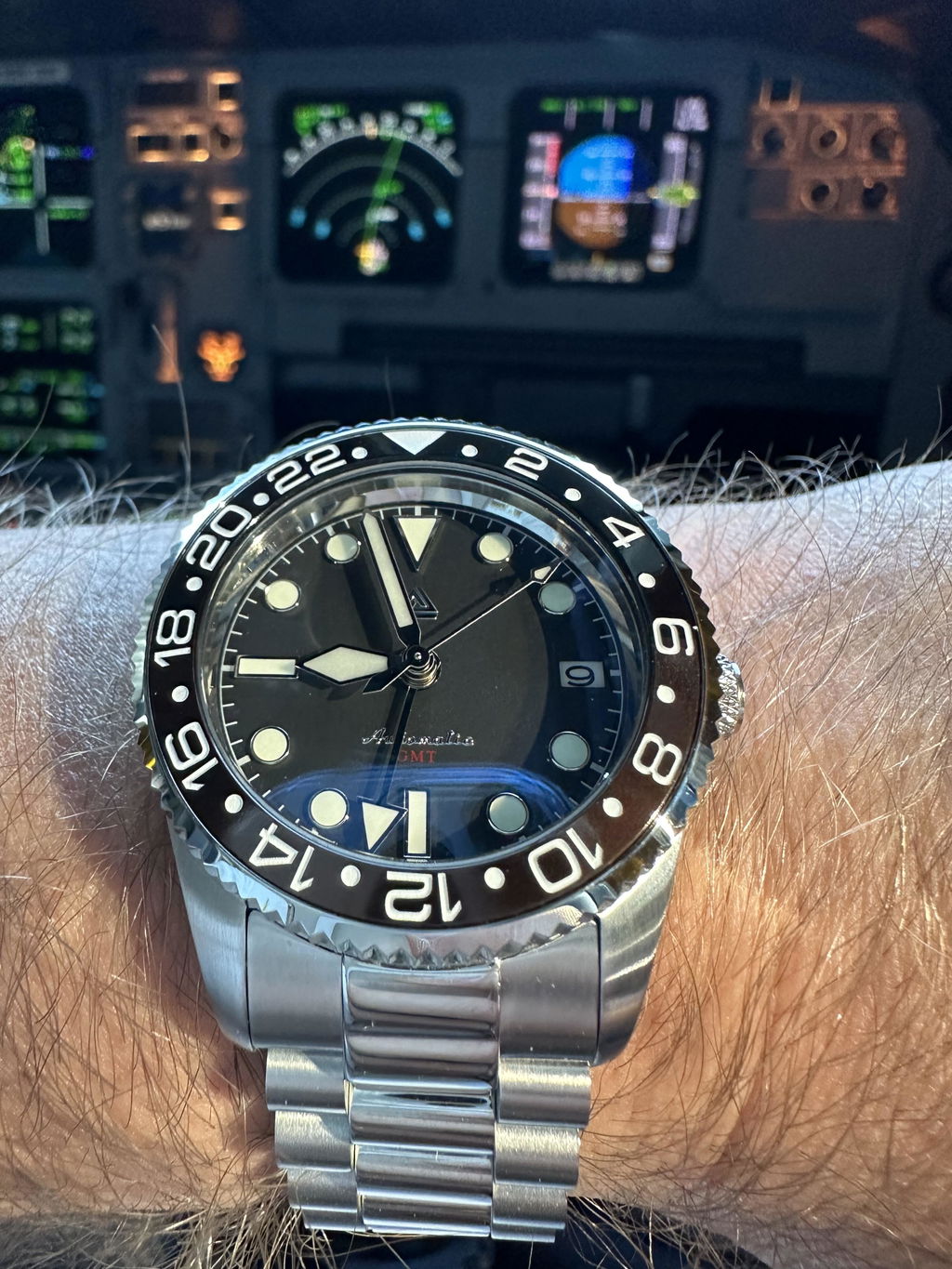

SKX GMT

Movement is perfect and with a slight adjustments to a nh35 dial fits perfectly

Using this mod part for: After marker mm200 case

Nh34

Perfect !!

Using this mod part for: SKX007 3 O'clock

New GMT movement at a great price

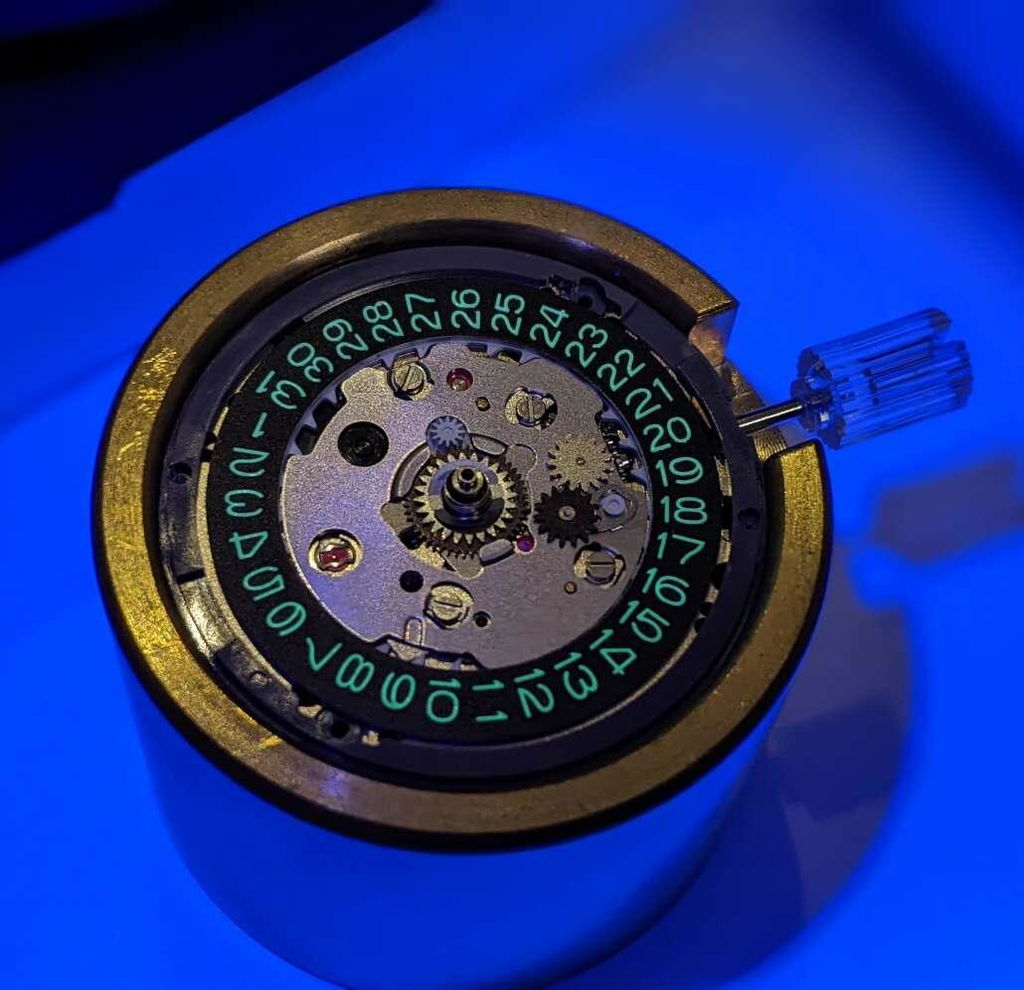

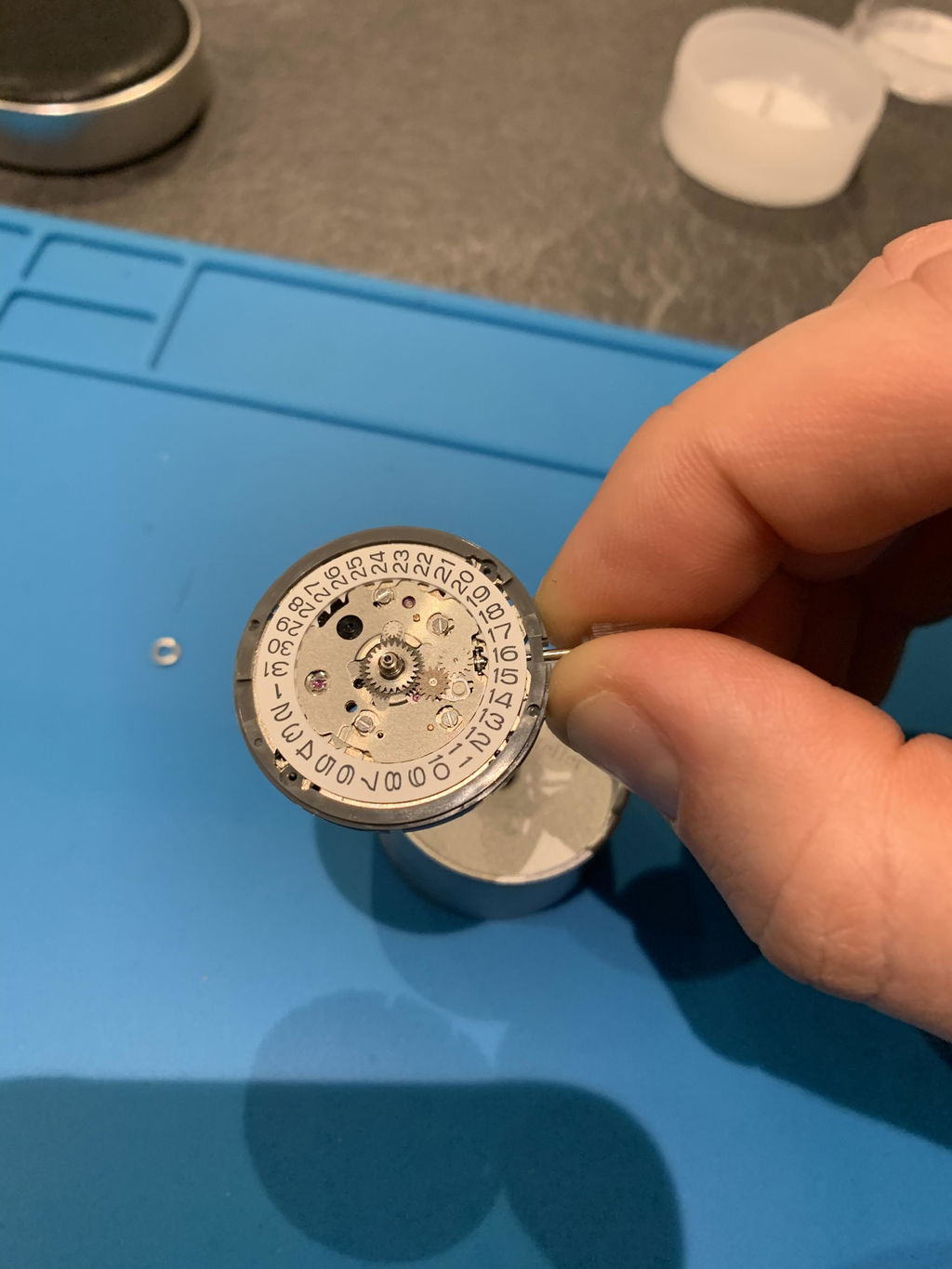

Got the non-regulated one, but was easy enough to regulate myself, and could mod the date wheel easily too!

Excellent quality and packaging was unbelievable! Well Protected. Very quick delivery, super responsive to preorder enquiries. Will definitely use again

I decided to buy the regulated movement and WOW is it accurate! I have been checking it with the online atomic clock and it is within 1-3 seconds (-) daily. That is peek performance from my point of view...

Movement failed after 1 week, have had to since replace the item, I don’t think this is the fault of the seller, because the rest of the order was remarkable as well as their service.

hello adriel, i’m looking to do a mod with the NH34 soon. is it difficult to swap the date wheel on this nh34 or is it as simple as removing the date wheel and changing it? thank you in advance, hoping you are well

Adriel from LuciusAtelier.com

Hello Jacob!

Thanks for expressing interest in our mod parts!

>> is it difficult to swap the date wheel on this nh34 or is it as simple as removing the date wheel and changing it?
Pretty much the same as NH35. Simply if you know what to do, else it might represent a challenge.

Hope this helps. Let me know if you have any more questions.

Cheers,
Adriel

Dear team, which cases are compatible with the NH34 in your website? I would love to fit the Seikonaut 36mm case but I read that its not compatible :(
Is the Seikonaut 40mm case compatible with this GMT movement? Cheers!

Hello Arnau!

In short, there are no known cases in the market that will fit NH34 for now. Simply because NH34 requires significantly more crystal clearance which most NH35/36/38 cases are not designed that way.

The best option is to wear a couple of months for GMT-ready cases, dials and 24H hands to be out before considering modding with NH34. Afterall, these are the 3 components that are required and none are available for now.
