Explorer Watch Case - 39mm - Explorer Case - Brushed Oyster - NH [Solid] - Lucius Atelier - Swiss Quality Seiko Watch Mod Parts

Explorer Watch Case - 39mm

Name: Explorer Watch Case - 39mm
Brand: Lucius Atelier
SKU: ECv2.39/FitsAll
Price: 249.0 SGD
Availability: InStock
Rating: 4.97 (74 reviews)

.price-ui--loading { display: block !important; opacity: 1 !important; }

$25 SGD - $329 SGD

Add Dial

Add Hands

Add Movement

Add Rotor

Additional Options

Assemble Watch +S$89 Your parts arrive as one finished watch — assembled and function-checked in my workshop. Adds 3–5 business days before shipping.

Extra Stem 1pc +S$7

Movement Holder +S$48

Vetus® Tweezer +S$19

Vetus® Tweezer + Extra 2 Pair Tips +S$29

See It On A Watch

Worldwide
Delivery Express
2–4 Days Replies In
1 Day 30-Day
Returns

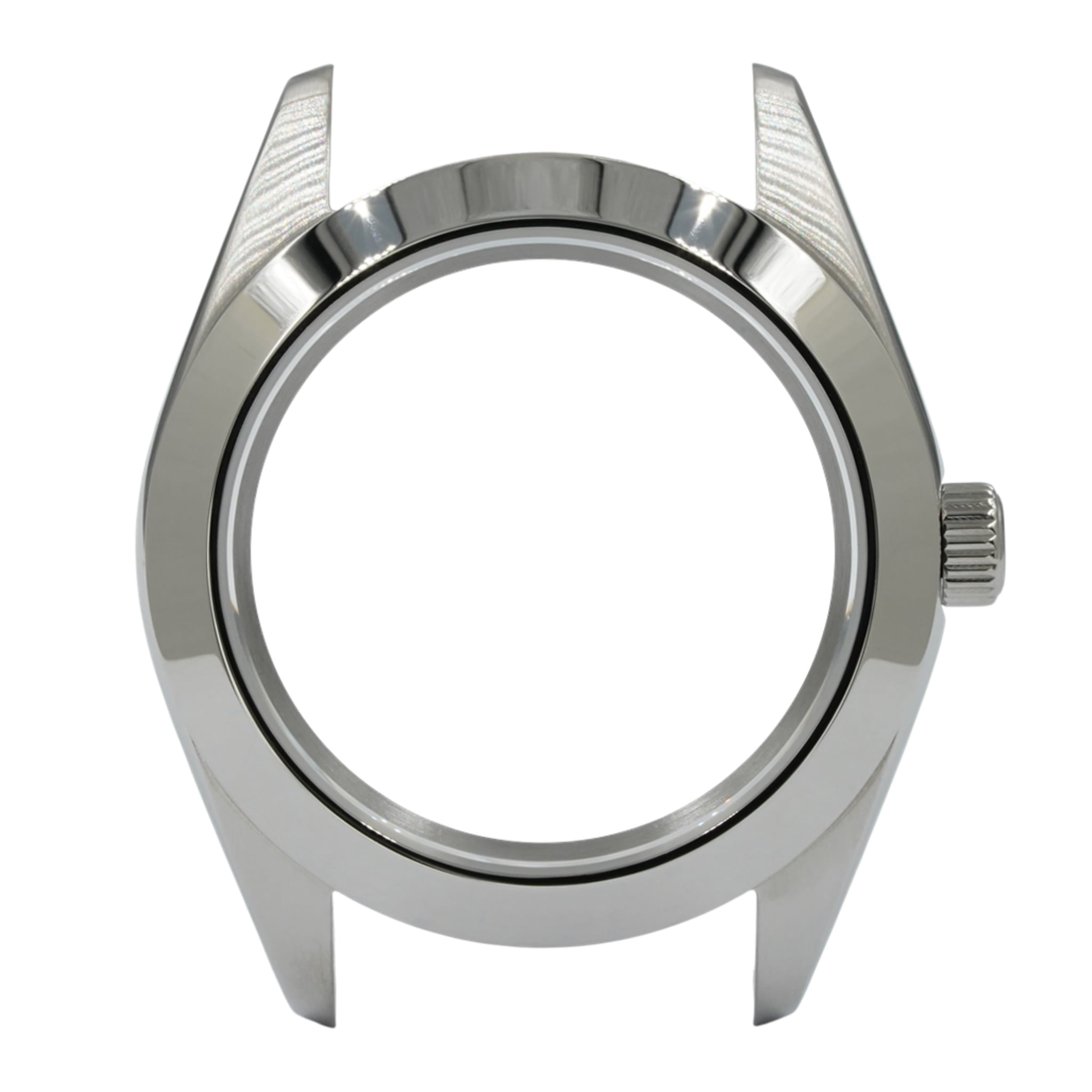

The 39mm Explorer — Sapphire, Crown and Bracelet, Built to Finish a Build.

A classic Explorer that has stood the test of time — the 39mm Explorer Watch Case is an easy, satisfying way to finish a build. It comes complete with a clear-AR sapphire, a screw-down crown, and the option of a solid brushed Oyster bracelet.

The Oyster clasp includes micro-adjustment, so you can fine-tune the fit without adding or removing links. It also takes Swiss ETA and Sellita movements with the right spacer and caseback.

Designed to fit all our 28.5mm dials on the grey dial holding spacer — no chapter ring needed. Tested to 200m.

Sapphire, crown and bracelet — the most complete Explorer.
Crystal pressed, crown fitted, Oyster bracelet ready. Add a dial, hands and movement and you have a finished watch. No chapter ring required.

Classic 39mm Explorer.
Diameter 39mm, case length 46.5mm, 20mm lugs. The proportions that make the Explorer such a reliable finisher.

Oyster bracelet with micro-adjust.
Optional solid brushed Oyster bracelet, 20mm tapering to 18mm, with a micro-adjustment clasp — no link removal needed to dial in the fit.

Seats dials on the holding spacer.
No chapter ring required — our 28.5mm dials seat on the grey dial holding spacer. Simple to build.

Swiss-capable, sapphire and crown included.
Fits NH35/36/38 plus Swiss ETA2824, ETA2893 and Sellita SW200, SW260, SW330. Flat sapphire (29.5 × 1.5mm, clear AR) and screw-down crown included. Rated to 200m.

Caseback	Total Thickness	Water Resistance	Best for
Solid	11.5mm	200m / 20 ATM	Slimmest profile, fully closed back
Sapphire (exhibition)	12mm	200m / 20 ATM	Show off a decorated movement

The caseback also matches your movement family — Seiko NH, Swiss ETA2824/2893, or Sellita SW200/260/330 — and ships with the matching movement spacer for your selection.

Heads up — sold separately

Dial, hands & movement. Chosen separately. Match the dial and hands to your movement (date / day-date / no-date).

Sapphire crystal and screw-down crown are included; the Oyster bracelet is included when selected. No chapter ring needed — dials seat on the grey dial holding spacer.

Specs
Build Guide
What's Included
How To Mod

Dimensions
1. Case Diameter 39mm
2. Case Thickness 11.5mm (solid caseback) / 12mm (sapphire caseback)
3. Case Length 46.5mm
4. Bracelet Width 20mm tapering to 18mm
5. Lug Width 20mm
Materials & Finish
1. Quality Swiss Production Quality, ISO 9001 Certified
2. Case Material 316L Stainless Steel
3. Crystal Flat sapphire, clear anti-reflective coating (pre-installed)
4. Crystal Size 29.5mm × 1.5mm
5. Caseback Screw-down — mirror polished or sapphire
6. Crown Screw-down, included
Compatibility
1. Movements Seiko NH35, NH36, NH38 · Swiss ETA2824, ETA2893 · Sellita SW200, SW260, SW330
2. Dials 28.5mm — fits all our dials (seats on the grey dial holding spacer; no chapter ring)
3. Bracelet Solid brushed Oyster, 20→18mm, micro-adjust clasp (per selection)
Water Resistance
1. Water Resistant 200m / 20 ATM
One of the simplest builds we offer: sapphire, crown and (optionally) the Oyster bracelet are already handled. No chapter ring needed — just add a dial, hands and movement.

What's already in this purchase:

The watch case with flat sapphire crystal and screw-down crown installed, your selected Oyster bracelet (if chosen), and your selected NH caseback (plus the matching Swiss spacers/casebacks if you choose an ETA or Sellita movement).

The 3 parts you'll need for a complete watch:
1. Dial (28.5mm) Seats on the grey dial holding spacer — no chapter ring required. Match it to your movement.
2. Hands Paired with your dial.
3. Movement NH35/36/38, or a Swiss ETA/Sellita with the matching caseback.
Optional finishing touches:
1. Decorated bridge + rotor (only visible with a sapphire caseback) — replace the stock NH bridge and rotor with our Côtes de Genève decorated set, viewable through the caseback. Our bridges fit only our rotors (not OEM Seiko rotors), so they’re chosen as a pair. Recommended for experienced modders only.
Want it built for you?

Tick the Assemble Watch option above and we’ll handle the full build in our Singapore workshop — case fitting, movement seating, crown alignment, caseback press and a function check.

Heads up: assembled watches require 2–5 business days of workshop time before shipping.

Once your parts arrive, see the How To Mod tab for assembly tutorials.

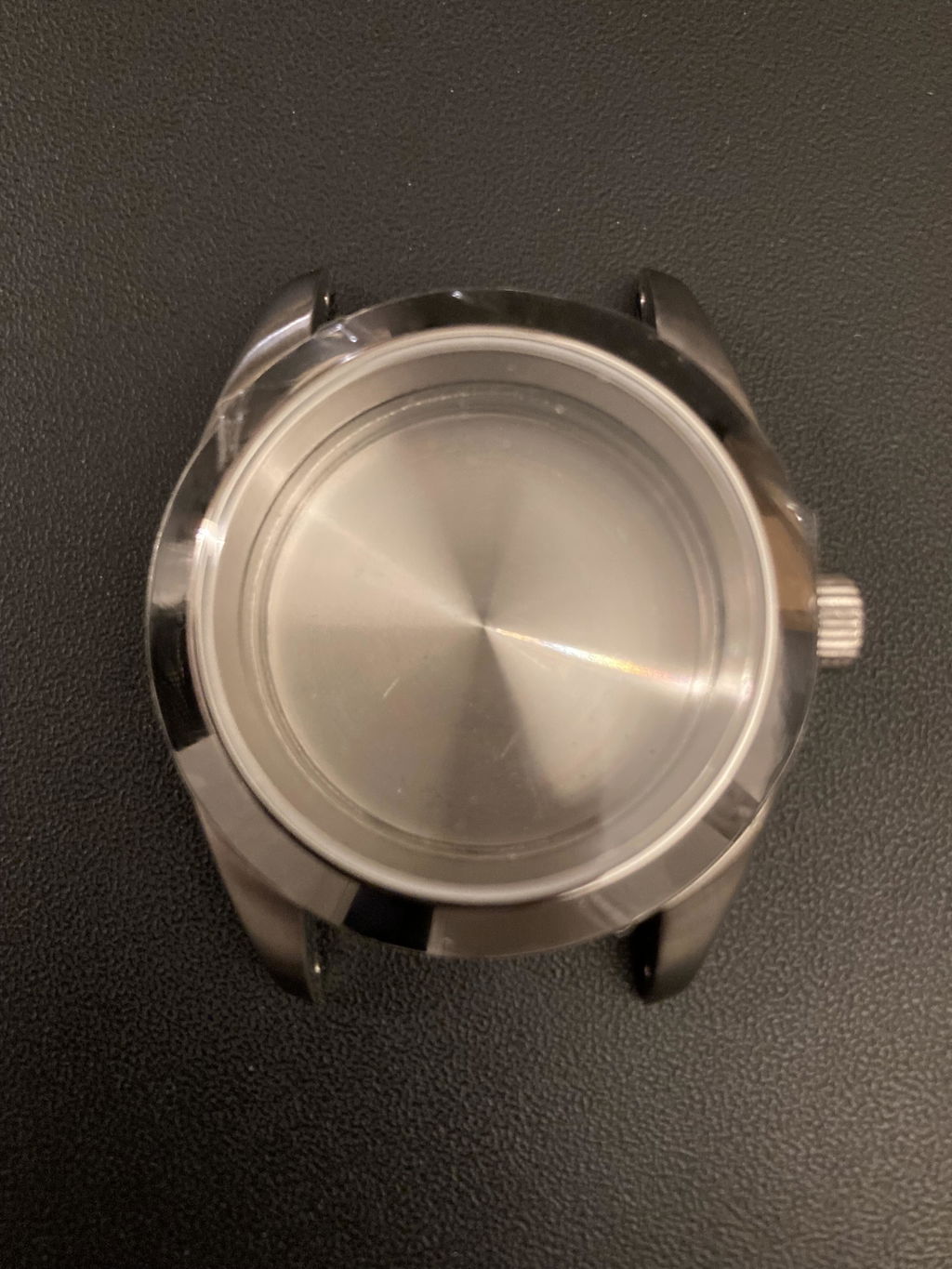

1. 1x Watch Case (sapphire crystal and screw-down crown installed)
2. 1x Oyster Bracelet (per selection)
3. 1x NH Caseback (per selection)
4. 1x ETA2824/SW200/SW260 Movement Spacer (only if that movement is selected)
5. 1x ETA2893/SW330 Movement Spacer (only if that movement is selected)
6. 1x ETA2824/SW200/SW260 Sapphire Caseback (only if that movement is selected)
7. 1x ETA2893/SW330 Sapphire Caseback (only if that movement is selected)
Dial, hands and movement are selected separately to complete your build.

All photos of watches with modification parts are for illustration purposes only and are not included with the case purchase.

Which movements fit the Explorer Watch Case 39mm v2?

Seiko NH35, NH36 and NH38, plus Swiss ETA2824 and ETA2893, and Sellita SW200, SW260 and SW330 — set by the caseback you pick, with the matching spacer and caseback supplied. Dials seat on the grey dial holding spacer, so no chapter ring is needed. Dial, hands and movement are chosen separately.

Which caseback should I choose for the Explorer Watch Case 39mm v2?

The caseback matches your movement family (Seiko NH, Swiss ETA2824/2893, or Sellita SW200/260/330) and sets the back style; the matching spacer and caseback ship with it. Note that the solid caseback is made for the Seiko NH family only; the Swiss ETA and Sellita casebacks come as the sapphire (exhibition) back. Solid is the slimmest profile at 11.5mm; sapphire is 12mm. Either is rated to 200m / 20 ATM, so the sapphire back keeps the full water-resistance spec.

Are the case and bracelet edges sharp, or are they rounded off?

They are rounded off — but they are still crisp, and we would rather say that than have you open the box expecting something softer. "Sharp" is genuinely subjective: a Rolex is sharp too, and where one person reads that as crisp and well-defined, another finds it catches. The bracelet clasp is the sharpest part of the whole package — that is the part to know about before you commit.

If a previous mod was painful to wear, it is worth working out what actually caused it: a poorly finished lug edge digging in is a different problem from a clasp catching on the back of your wrist. Email hello@luciusatelier.com and say which it was, and you will get an honest answer on whether ours will be better or much the same.

Do you customize cases? Can I have a case machined or finished to my own spec?

Cases ship exactly as listed — no custom machining, no changes to size, lug width or lug shape, no alternative finishes of an existing case, and no engraving (a local engraver or jeweller can engrave a finished part after purchase). What you can customize is the build: choose the case, dial, hands, chapter ring, bezel insert, crystal and bracelet you want and LA will assemble the finished watch for you. Bespoke design work — one-off dials, mockups or renders, designing a build to a brief — is not offered. For fully custom work, see the list of watch modification specialists.

Customers praised this 39mm watch case for its exceptional quality, fit, and finish. The case features excellent water resistance, precise tolerances, and superior polishing. The bracelet received high marks for solid end links and tight fitment. Some noted the crown could be larger and clasp requires effort to open. Fast shipping and assembly service available.

Quality of this case is as good as any I've handled, fit and finish is above expectations
Quite literally the nicest watch bracelet I have ever touched
This case is perfect. If you are doing a rolex explorer homage, this. is. the. case.

5 stars: 72 (97%)
4 stars: 2 (3%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Some of the reviews shown are from related products the merchant grouped with this one.

Using this mod part for: Built for Sellita SW210 hand wind movement.

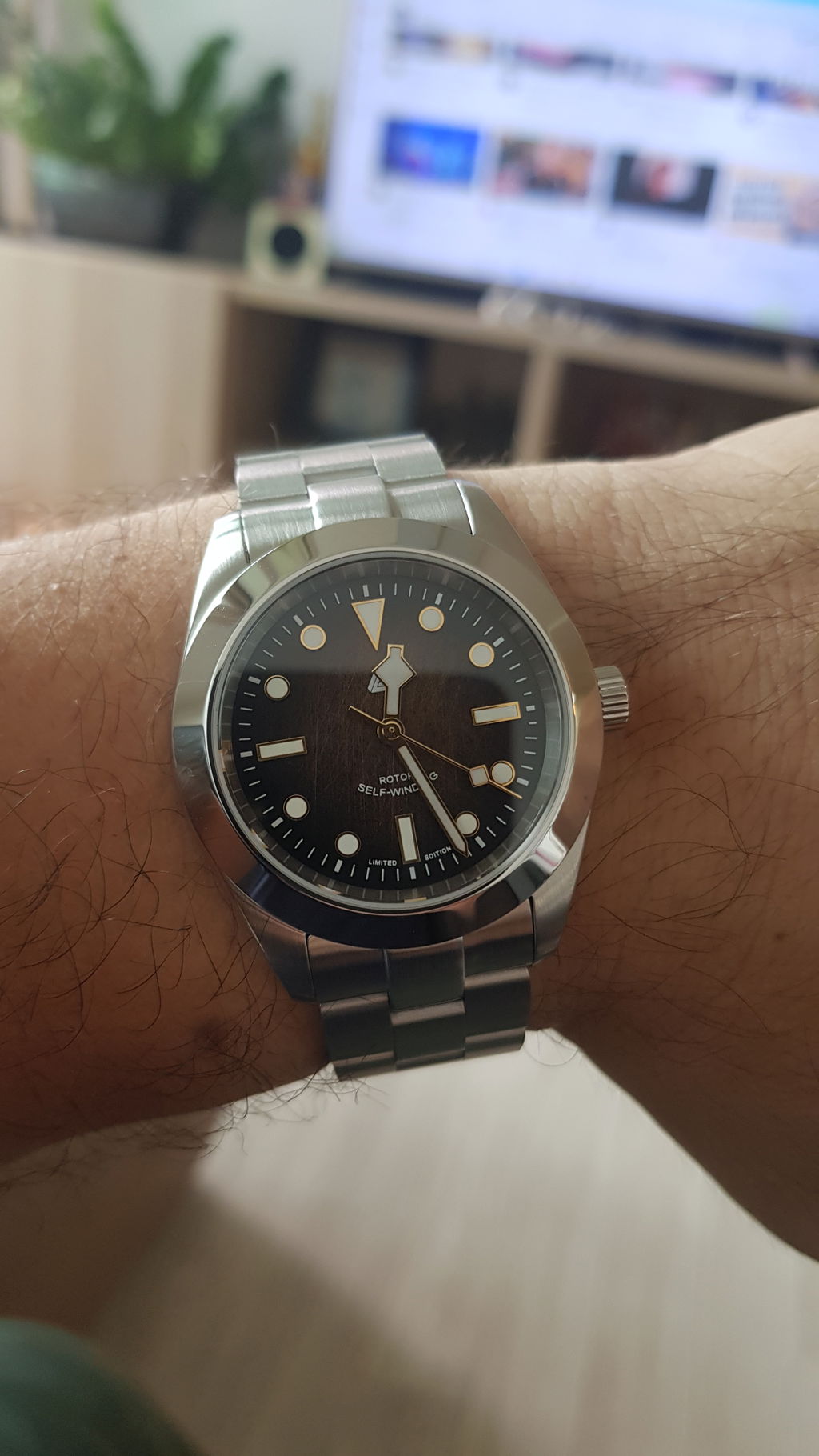

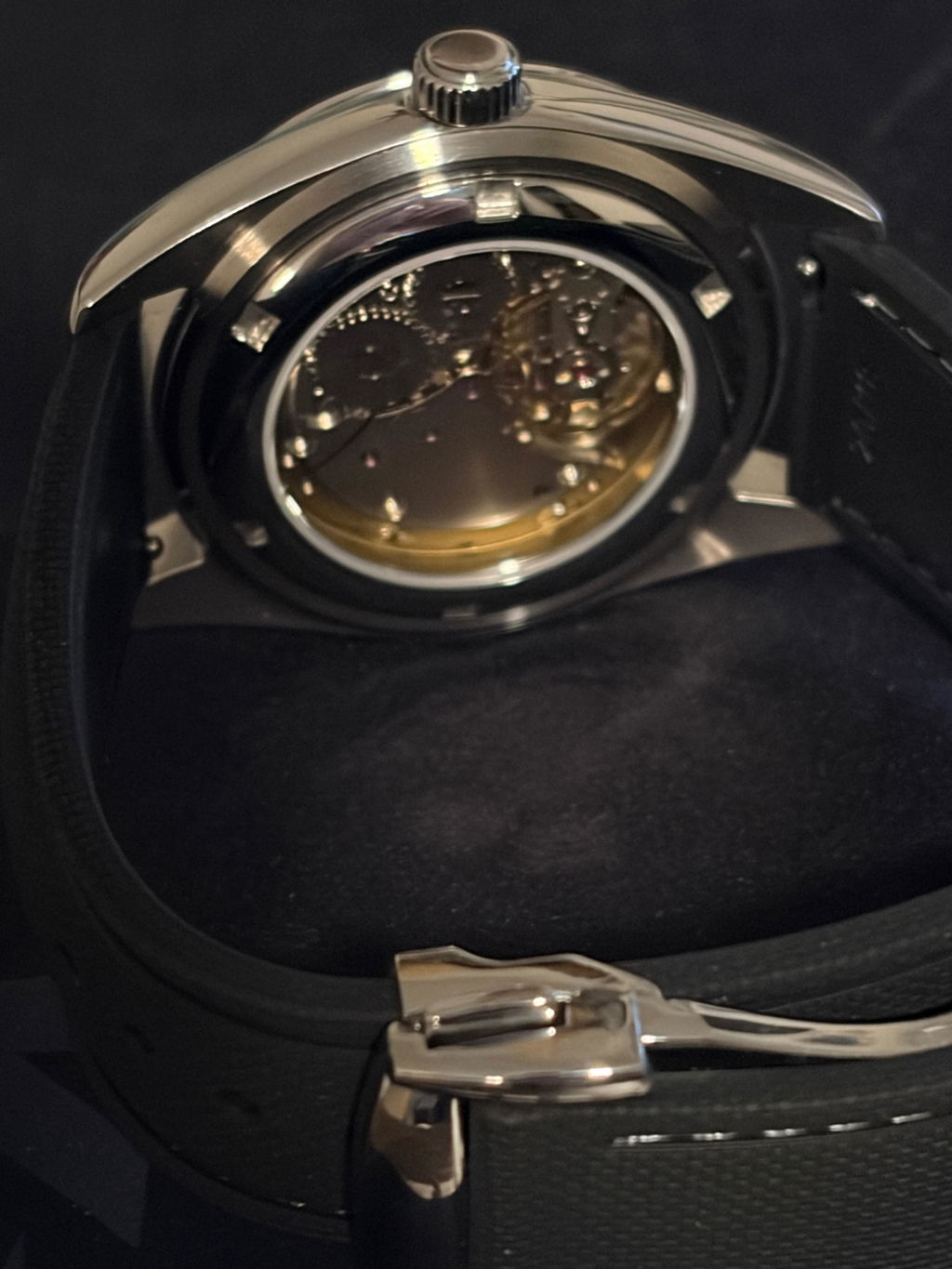

Explorer 39mm with SW210 hand wind movement

I wanted a hand wind watch with water resistance great enough to dive (I'll never go diving). The option for the sw200 movement worked perfectly with the sw210, very happy with how well this fit. Dial and hands are from Otto Frei (don't tell Lucius), compatibility with this case was far better than expected, tolerances were quite impressive. I've been building watches for roughly 8 years now, the quality of this case is as good as any I've handled previously. fit and finish is above expectations, I recommend this product.

Using this mod part for: N/A

Explorer case

Ordered an explorer case for my latest project and yet again extremely happy with the quality and the way it looks, just stunning and really looking forward to seeing the finished article, thank you very much Adriel.

Explorer/Ranger build

Great looking combination. Fits very well on my wrist and looks fantastic!

Using this mod part for: I’m making a watch from scratch.

Amazing quality

This watch case feels absolutely amazing. It feels sturdy and strong and very comfortable just like my omega. The polishing is amazing.

Great case, beautiful proportions and great quality

Amazing

Using this mod part for: Aftermarket case

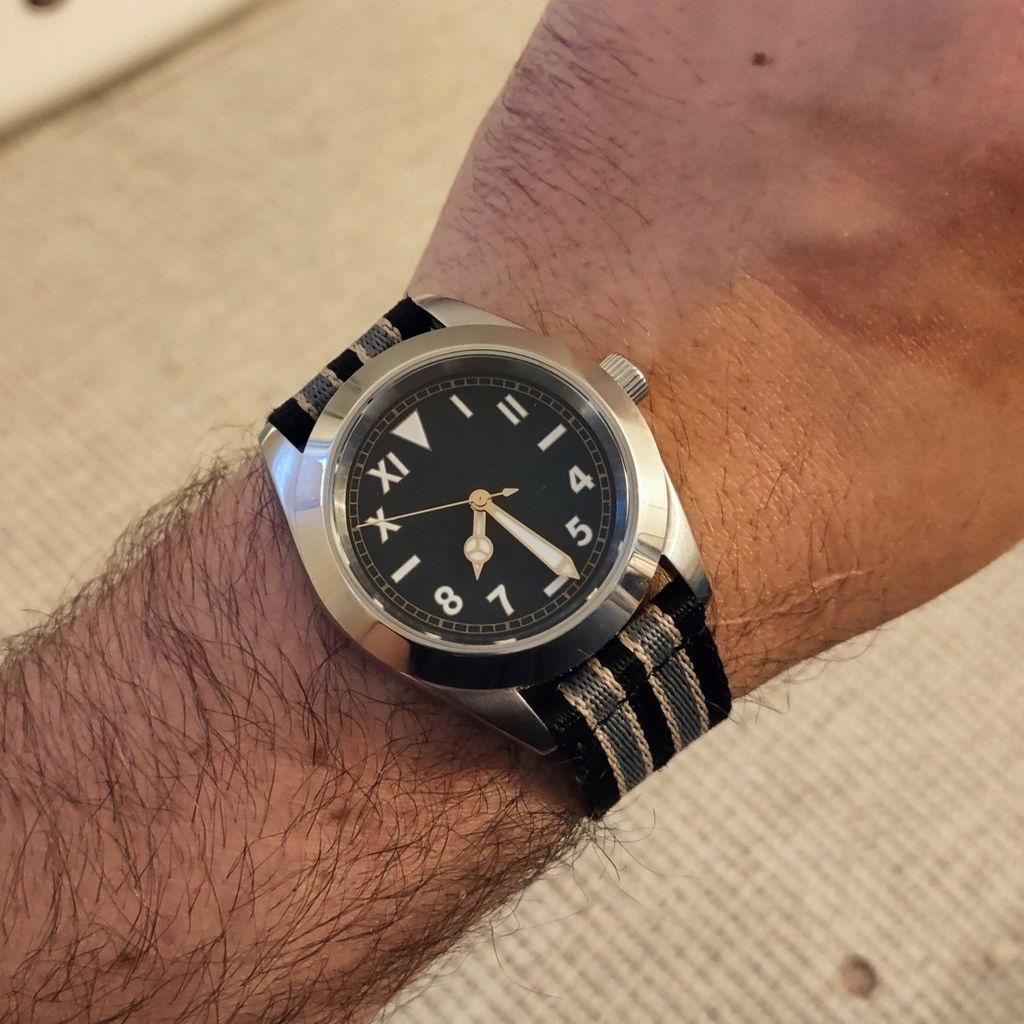

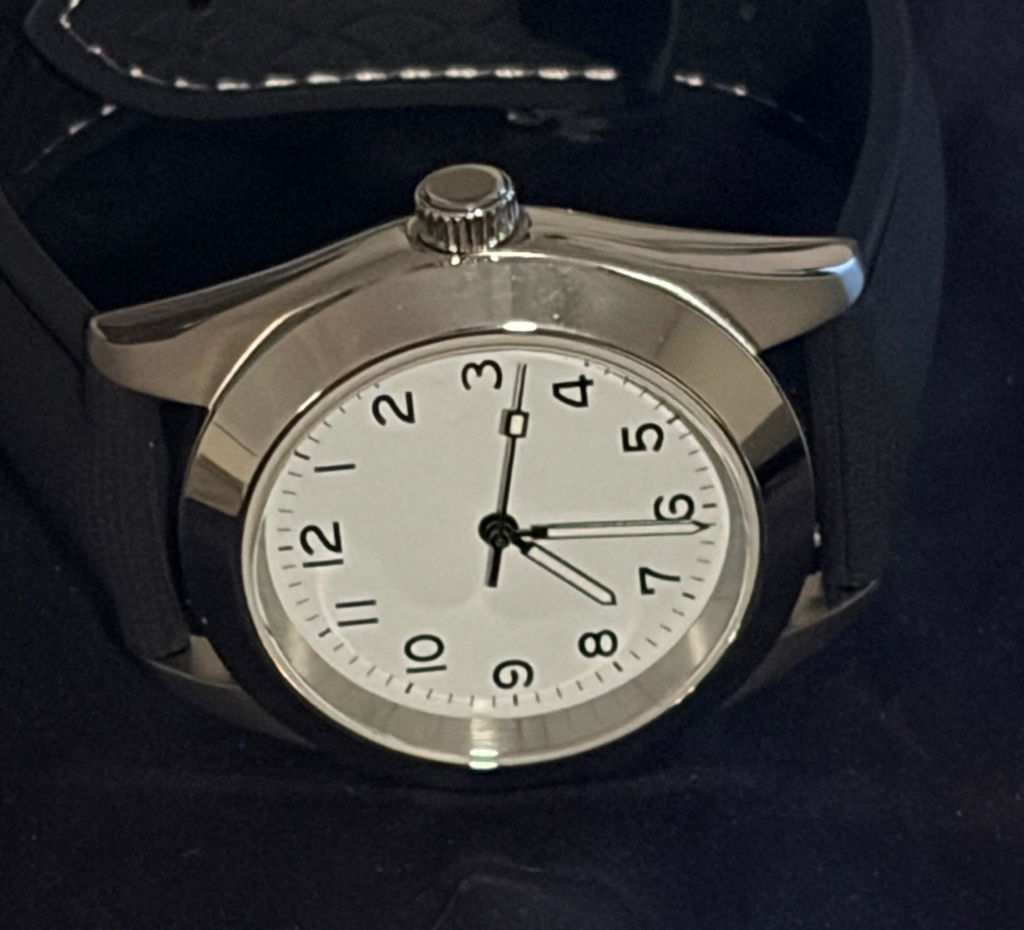

California Dreaming

My first parts build. The 39mm explorer case turned out perfect for my California dial build. Great fit on my 7" wrist

Using this mod part for: Explorer case full build nh38

Solid case second build

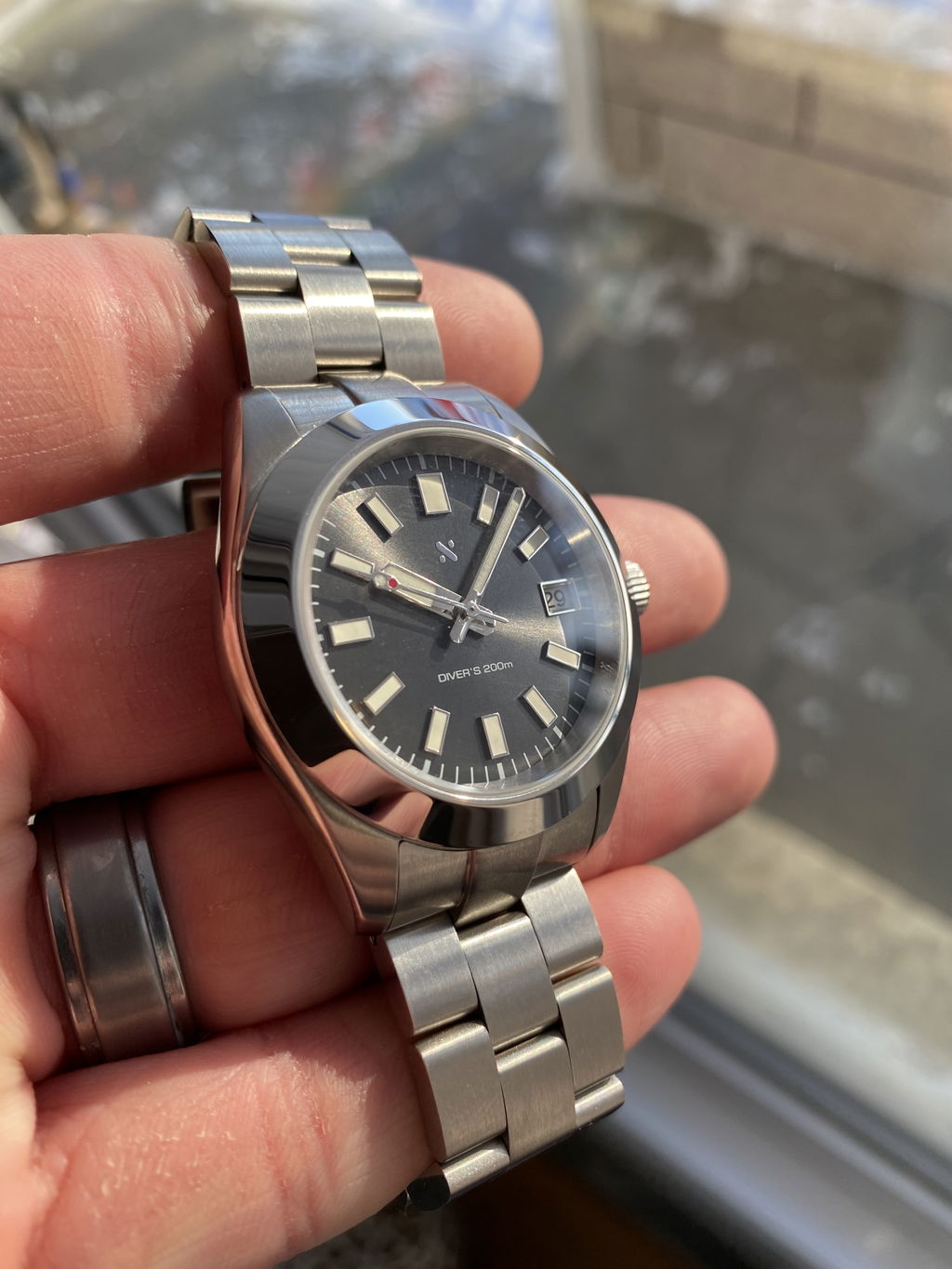

I liked the first case so much I built a second. Awesome quality, fast delivery, and movement was dialed I to +1 sec. Just an explorer build.

Using this mod part for: Scratch build for a client

Top notch quality

Shipping was incredibly quick to Canada. Quality of the case and bracelet are the best you’ll find. Worth the money.

As good as it gets

This case is perfect. If you are doing a rolex explorer homage, this. is. the. case.

Using this mod part for: Full Lucius Atelier Build

Everyday look but a built for a diver

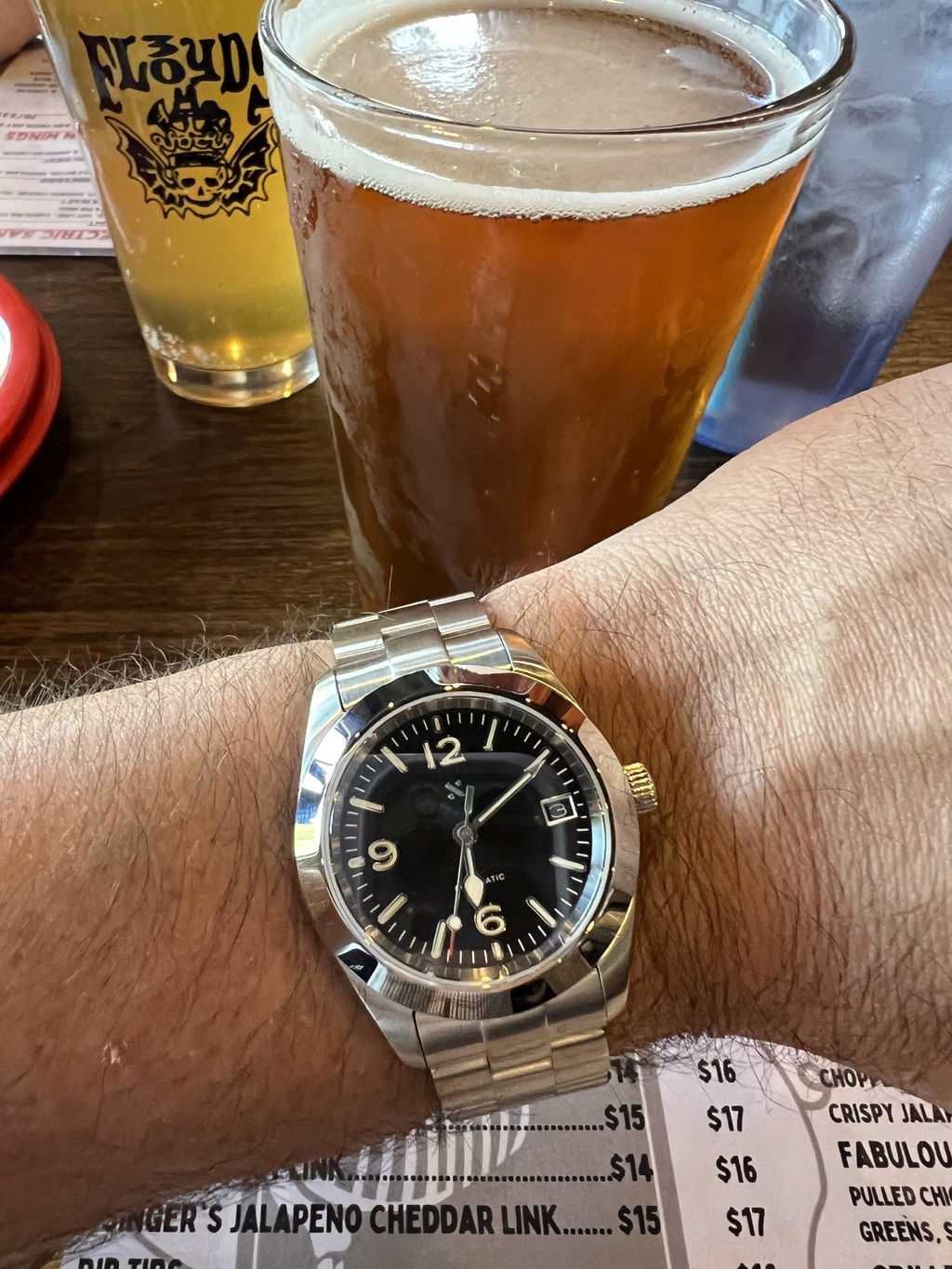

Swapped the internals from my Seikonaut for an Explorer build. Dial was more fitting. LA is by far my go-to for quality custom pieces.

39mm Explorer Case

Great quality, everything fit as it should.

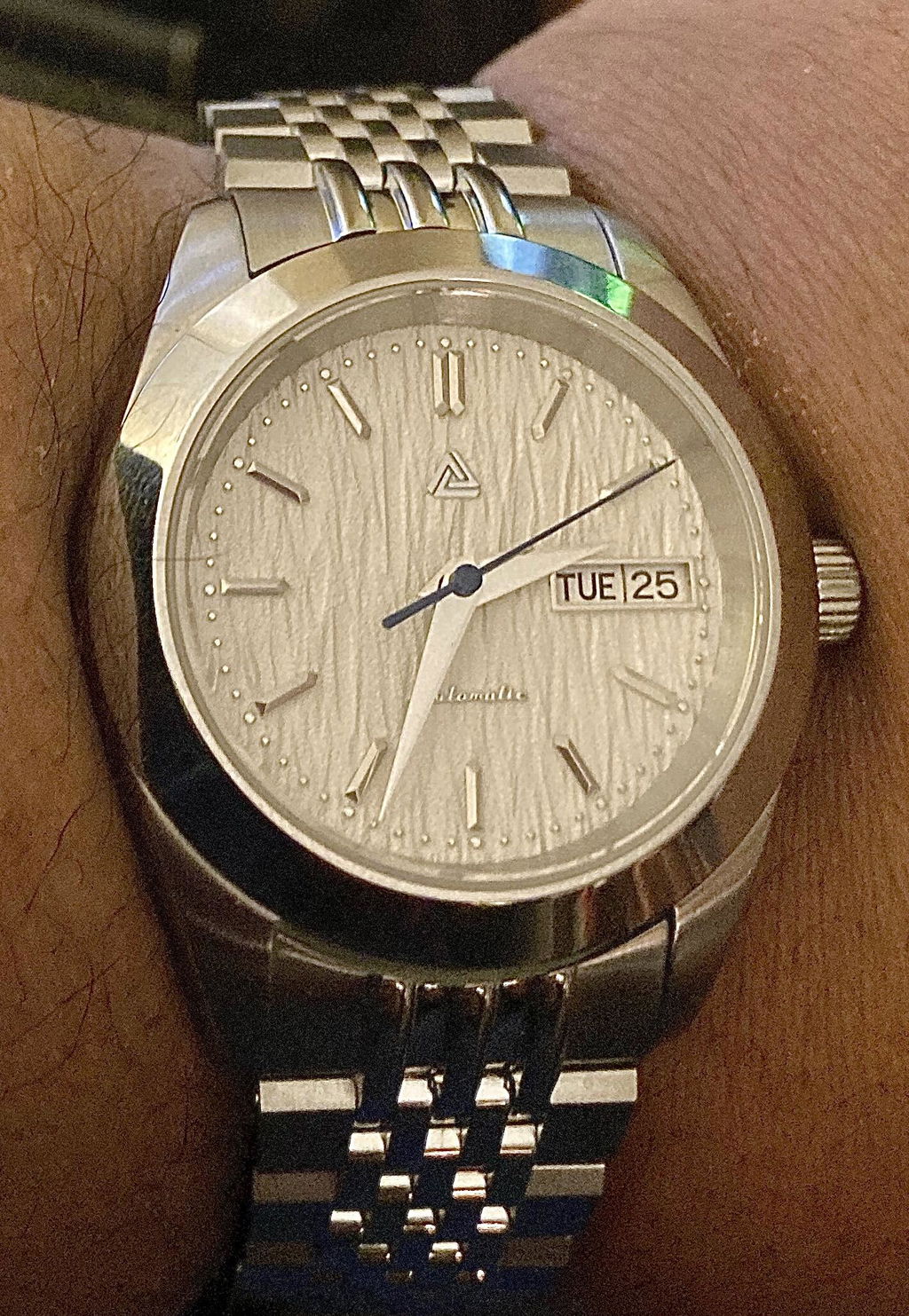

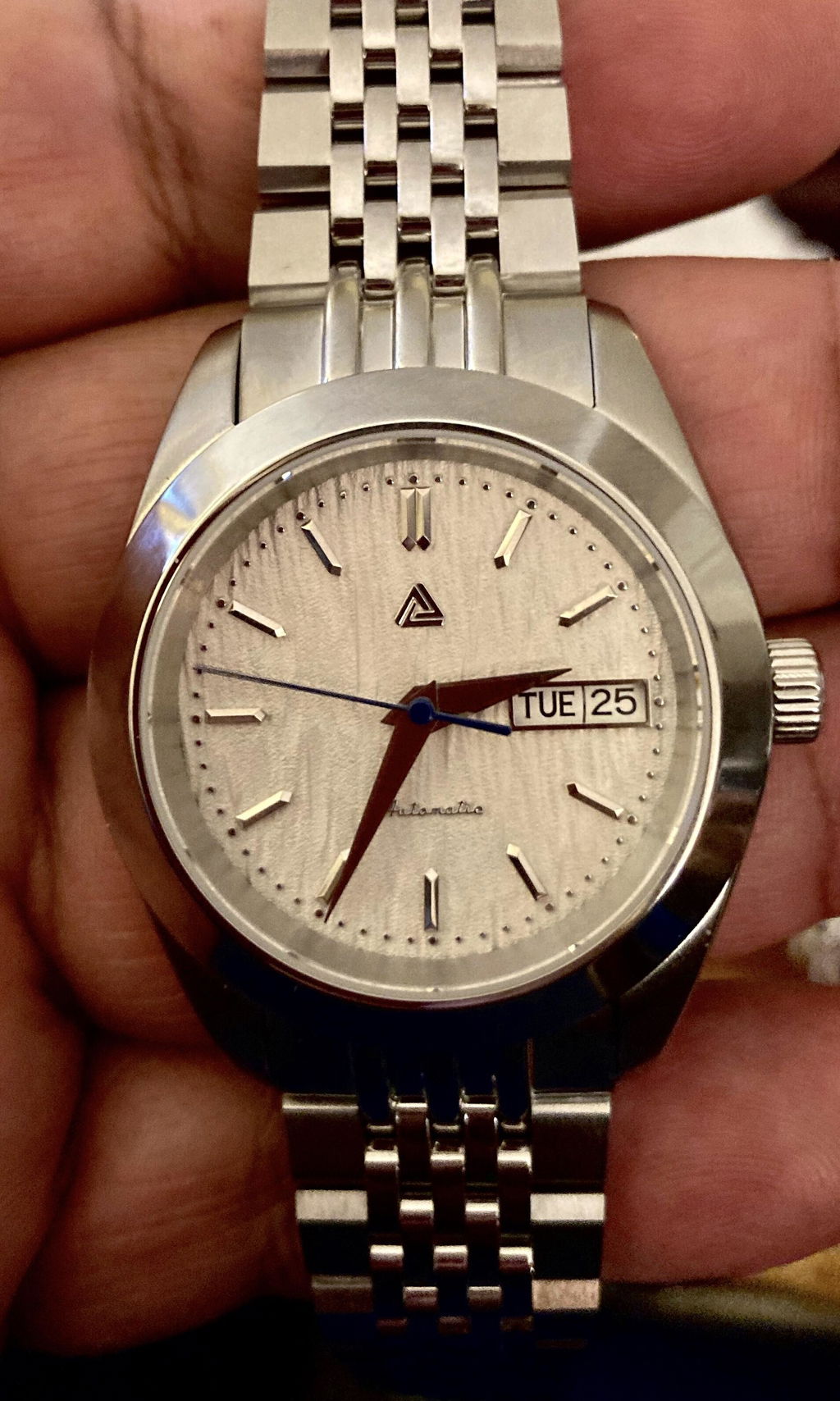

Using this mod part for: A GS-styled Rolex Day/date

Superb Case/Build

A Nice Alternative to the GS, with a Rolex design line…
Expressive dial. Matches well with the explorer case. If you’re on the fence on a Grand Seiko, an LA is a good option.

Using this mod part for: New build

My first build

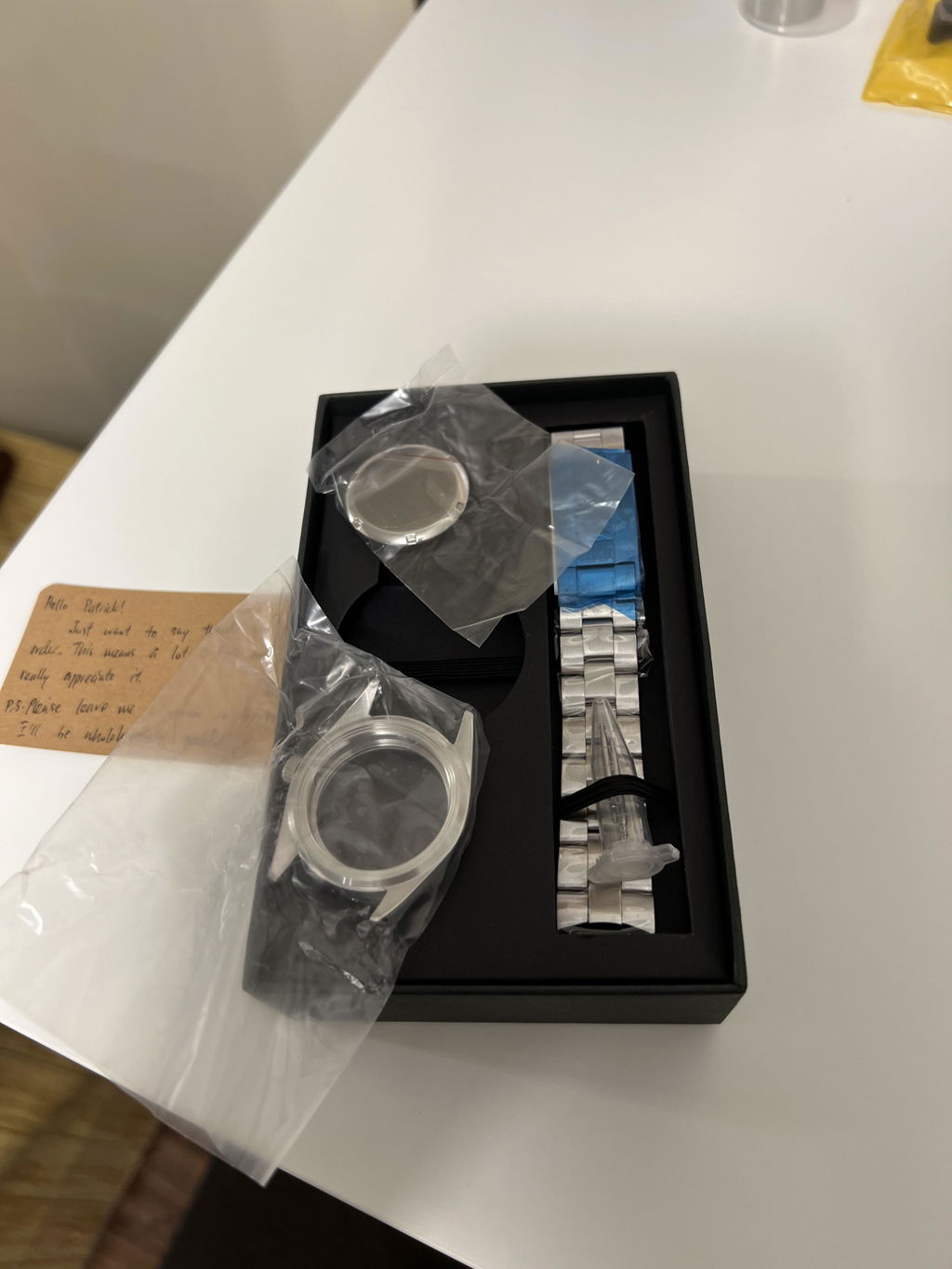

This was my first build. Shipping was super fast and the case/bracelet even comes in its own nice packaging. The case and bracelet look and fit great on my 7 3/4” wrist. Bracelet is solid with nice tight fitting end links. Definitely what I was hoping for and I will definitely be but here again.

Using this mod part for: Explorer case

Absolutely brilliant

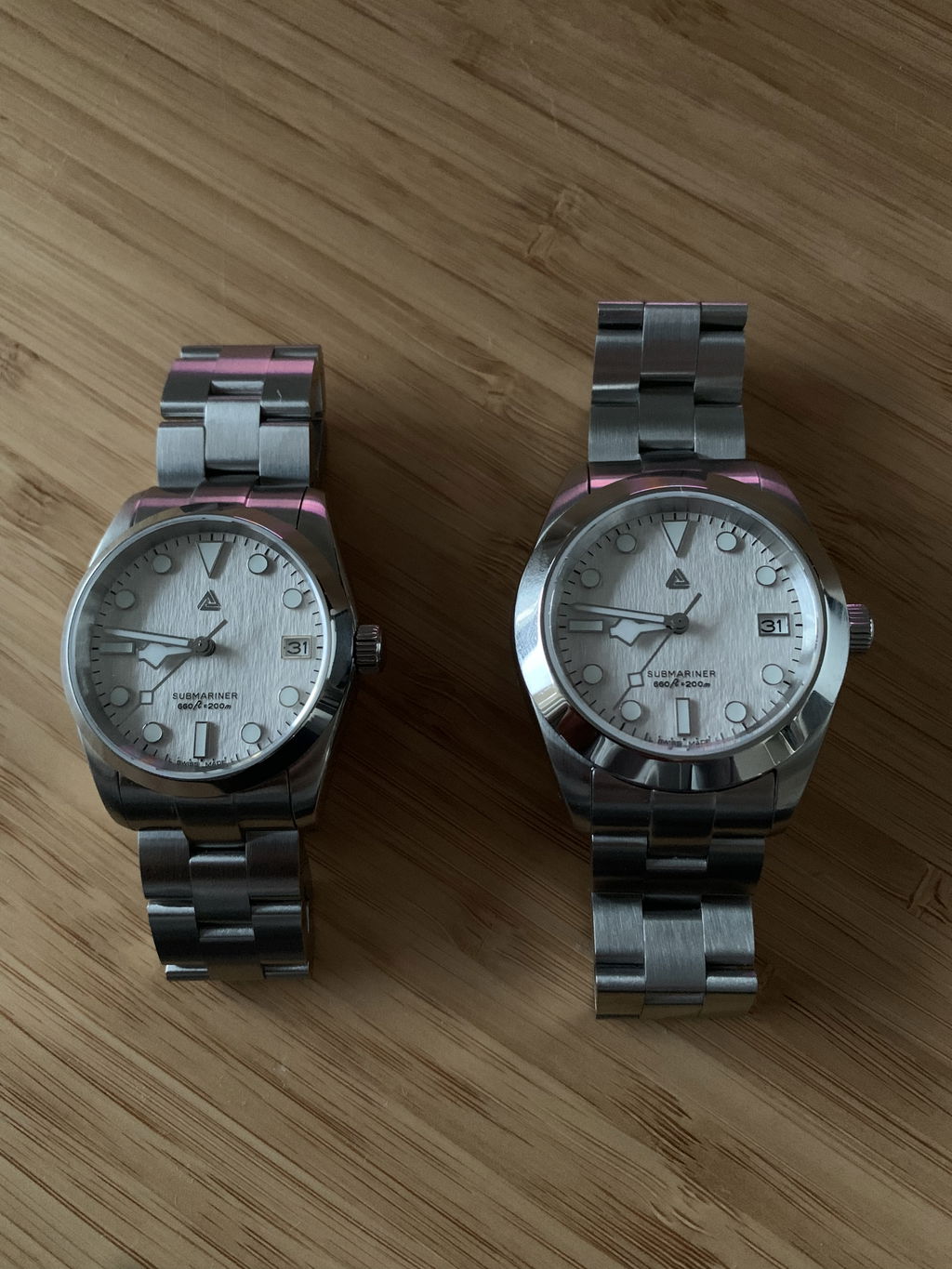

Quality and details are decent. Bracelet fitment and solid end links are awesome. Clasps are a bit crafty but not a big problem. 39mm and 36mm

Great case, great guy!

This is a nice case, can't wait to see what else Adriel comes up with. He was quick to answer my questions in helpful manner.

Explorer 39

Great finished case. Beyond expected. Bought with assembly that went incredibly fast and without flaws. Definitely got me interested in buying more quality items from LA.

Using this mod part for: V2 Explorer Case 39mm

V2 Explorer Case and Mod

This case is exactly as described and pretty nice quality as well. Adriel also did an excellent job putting this mod together. Will definitely keep Lucius Atelier in mind for the future.

good product

thank you for this wonderful case.
I will enjoy a little more improvement.

Can't find anything better for the price

Positive note: The case looks fantastic, the crystal is top quality and there's plenty of space to fit the movement comfortably having the caseback holding it in place.
Negative note: I personally found the rolex style clasp unusual (for a seiko built) and it's little hard to open it over the pressure point. Also, I had to shave 0.5mm off an end link to make it fit - yet is still better than any Strapcode/miltat.

All things considered, this is the best product you can find at this price. 100% worth it

Using this mod part for: Aftermarket case (39mm Explorer)

Great Case!

Love this case. Very well made. Can't wait for more to come in stock. Wears great. NH36 movement fits slightly loose with the standard grey spacer, but not noticeable once fully cases.

Awesome quality

Really good quality case. Polishing and brushing is amazing.
