Nautical Explorer Dial v2 (No Date)

It is a maritime diver face built around symmetry — a semi-glossy black surface with a fine grainy texture and bold 3-6-9-12 numerals seated inside the outer minute track, between applied beveled indices. The even-quarter layout gives a wide, balanced, instantly legible read. The numerals and indices are filled with 100% Swiss Super-LumiNova® BGW9 (Grade A) for a clean blue glow at night. The v2 comes in two complications: a no-date version for a perfectly symmetrical face, and a date version with a discreet window at 4 o'clock.

Applied. The hour markers are applied (raised) indices — raised metal on the dial surface, not flat print. The relief is what gives the face its depth and light play as the wrist moves.

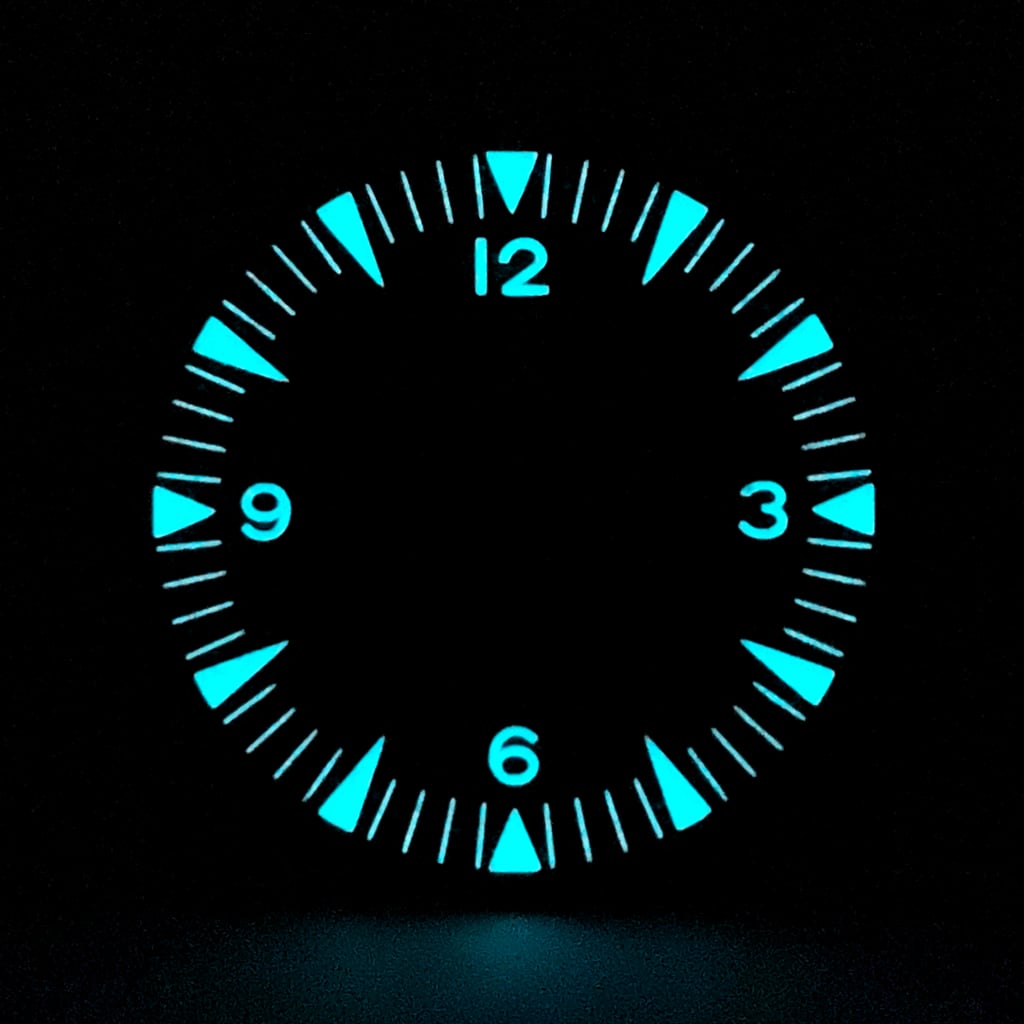

Yes — the applied indices are filled with 100% Swiss Super-LumiNova® BGW9 Grade A: a cool blue glow by night, white by day, lasting up to eight hours on a full charge. For maximum glow, pair it with hands that also carry BGW9 so the whole face glows together (hands are sold separately).

This is a no-date dial, so a no-date caliber is cleanest — the NH38 (the NH70, NH71 and NH72 fit too). It also runs on a date caliber like the NH35 or NH36, and on the wider Seiko/TMI family (7S26, 7S36, 4R15, 4R35, 6R15, NE15, NH25, NH26); the date wheel just turns unseen behind the blank dial. In fact, many modders fit an NH35 or NH36 on purpose to future-proof the build — that way they can later swap to a date or day-date dial without changing the movement. One thing to expect if you do: the crown keeps its date-setting position, so you'll feel it click into that detent when you pull the crown partway out — but with no date window, nothing changes on the dial face.

Yes, almost certainly. This is a standard Seiko mod dial — 28.5mm in diameter and 0.4mm thick, the industry-standard size — so it fits most, if not all, Seiko cases. Where a dial is shown with a particular case, that's an aesthetic pairing, not a fitment requirement. If you're unsure, the surest check is to remove your current dial and measure it with a vernier caliper.

The dial ships with four legs so it fits two different crown positions. Seiko movements come in 3 o'clock and 4 o'clock crown layouts, and the dial feet sit in different places for each. Clip off the two legs that don't match your crown position — two stay, two go.

Remove the two legs that don't match your movement's crown position by clipping or gently twisting them off, then seat the dial as normal — two legs stay, two go. Alternatively, set the movement's crown to the 3 o'clock or 4 o'clock position, superimpose the dial on top, and see how the feet line up — whichever way it aligns, note which two legs need cutting and proceed from there. See the How To Mod tab for the full fitting walkthrough.

Both our normal and ultra thin chapter rings fit this dial. Where a dial has applied (raised) indices, they sit within the clearance of either ring — so the choice is purely about looks: the ultra thin chapter ring sits low and discreet, while the normal sits a little more pronounced. Pick whichever suits your style.

Yes, it's a limited edition, and it won't be restocked. Once the run sells out it's retired for good. The edition size is shown on the product page.

No — dials and hands are sold separately. This listing is for the dial only; choose a matching handset to complete the build. If your dial is lumed, pairing it with lumed hands in the same lume type keeps the whole face glowing together.
