Pilot 34mm — Ultra Thin NH34-Ready Watch Case

.price-ui--loading { display: block !important; opacity: 1 !important; }

$120 SGD - $145 SGD$0 SGD

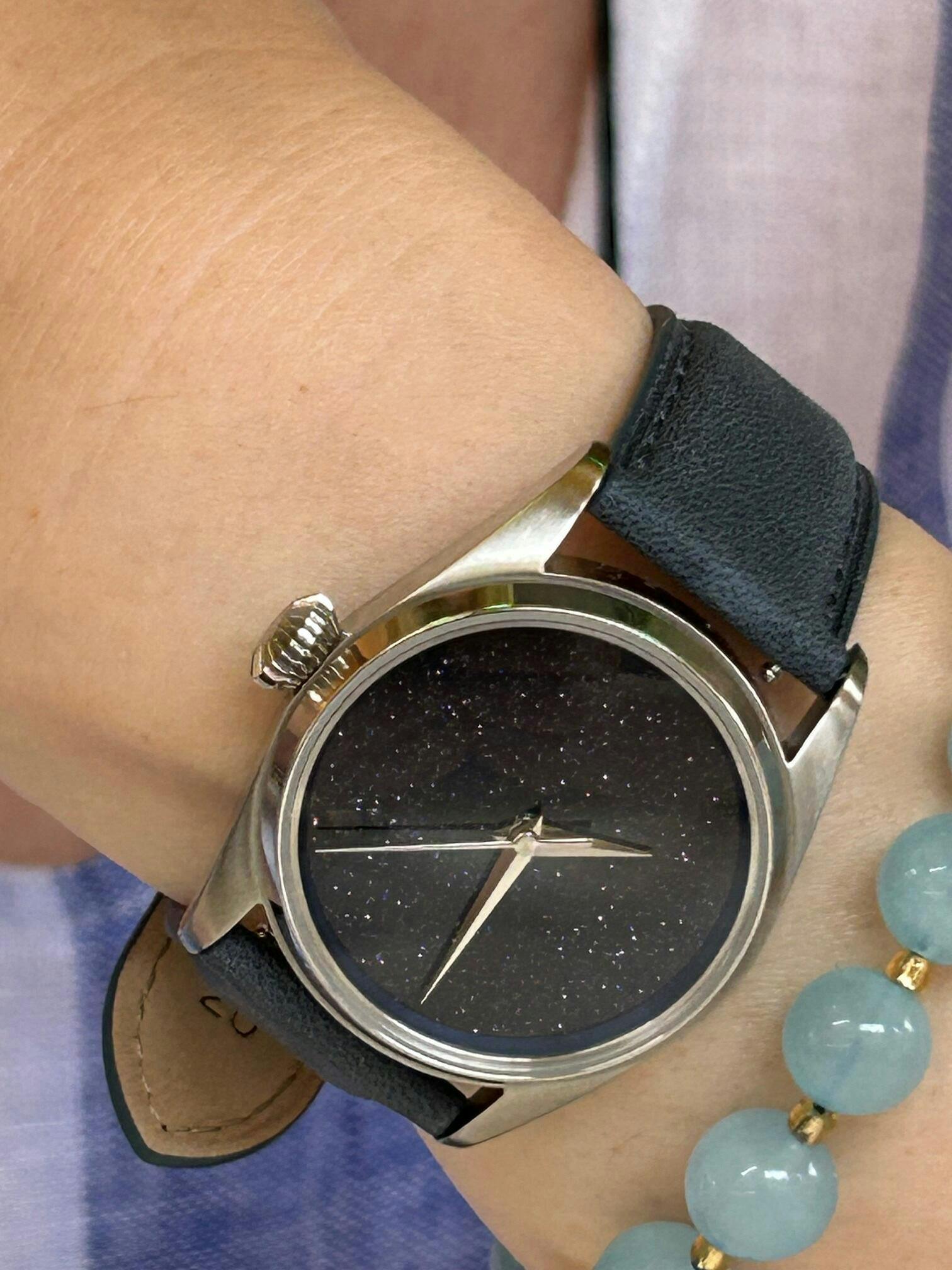

Pilot Watch Case 34mm Ultra Thin on wrist with double-domed sapphire crystal

An Aviation Classic. Reborn Ultra Thin. Built for GMT.

The Pilot Watch Case 34mm, part of our Ultra Thin Edition series, is a faithful reinterpretation of the aviation-inspired pilot watch — built around the NH movement and engineered to a profile most pilot-style cases can't reach.

The defining choice is the size. While most modern pilot watches push 40mm and beyond, the 34mm Pilot earns its character precisely by going smaller. It carries the understated elegance of vintage pilot watches from the era when 34mm was a normal men's watch size — proportions that emphasise craftsmanship over wrist-real-estate, and a silhouette that complements rather than dominates the wrist.

The signature element is the double-domed sapphire crystal — a vintage detail that adds 1mm of height over the Explorer 36mm Ultra Thin platform, but earns it back as NH34 GMT compatibility. At 10.96mm with the solid caseback, this is among the smallest and thinnest GMT-capable cases available for the NH movement.

Sapphire pre-installed. Ready to assemble.
The double-domed sapphire crystal ships pre-installed and aligned at our workshop — no crystal-pressing required. You add the dial, hands, crown, chapter ring and movement, and you have a complete watch.

A vintage size, by design.
34mm is deliberate, not a compromise. It draws on decades of classic pilot watch proportions — the era when 34mm was a standard men's watch size — and delivers a watch that feels balanced on every wrist size, from 6 to 8 inches.

Genuinely thin.
10.96mm with the solid caseback. Building a GMT here is the harder ask: the NH34 GMT movement is 7.99mm tall on its own — which leaves barely 3.0mm for the case body, the double-domed sapphire, and hand clearance combined. Tight engineering, with vintage proportions intact.

GMT-capable — the uncommon build.
Fully NH34-ready. A 34mm GMT pilot watch is an extraordinarily rare combination at any price; we're not aware of another modder-accessible case that does it at this profile.

The double-domed signature.
The crystal isn't flat — it's double-domed on both surfaces, a vintage detail that nods to early aviation watches where the curved profile shed water and resisted impact. It catches light differently across the face and adds depth to whatever dial you build behind it.

Caseback	Total Thickness	Water Resistance	Best for
Solid · HEADLINE BUILD	10.96mm	100m / 10 ATM	The thinnest profile — daily wear
Sapphire	11.9mm	100m / 10 ATM	Movement display — show off the rotor

The solid caseback is the headline build — this is the case at its slimmest. The sapphire caseback adds slight thickness in exchange for a view of the NH movement.

Heads up — sold separately

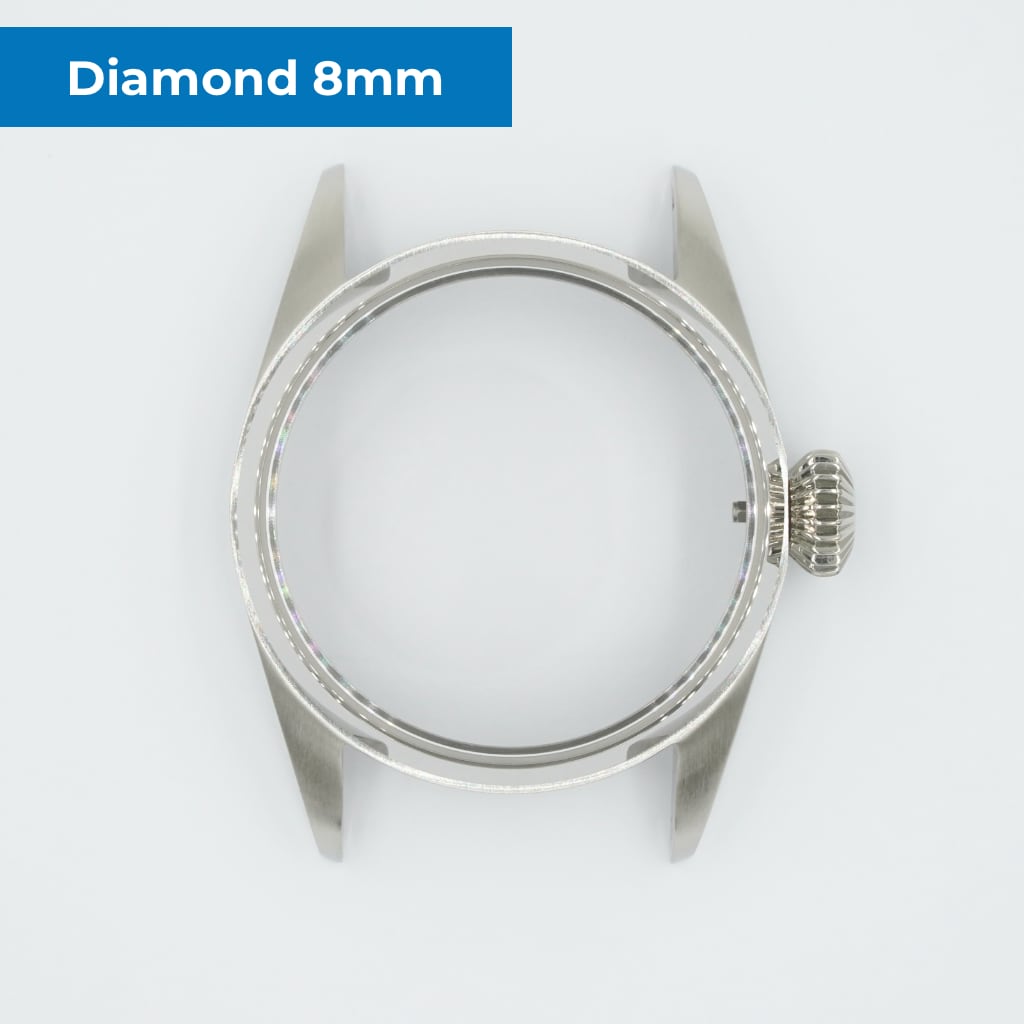

Crown. The crown shown in product photos is for visual reference only. Crowns must be selected above — this case fits our SKX-style crowns in coin-edge, knurled, and onion styles, plus our Gen II crowns. Browse compatible crowns .

Chapter ring. This case requires a SKX013-spec chapter ring to seat the dial correctly — without it, the dial sits too low and hands won't clear. The case fits both normal and ultra thin chapter rings; the choice depends on your dial, not the case. If your dial has applied (raised) indices, choose ultra thin for clearance. If flat-printed, either works. When in doubt, ultra thin is the safer default. Browse compatible chapter rings .

For experienced modders only — TYPE M movements only

This case fits TYPE M versions of NH34, NH35, NH36, NH38, NH70, NH71, NH72 only. TYPE L will NOT fit. Due to tight clearance between hands and sapphire, this case is recommended only for professional watchmakers and experienced modders.

NH34 / GMT builds: for optimal second-hand clearance, the second hand must be under 12mm in length — or use a second-hand cap. Confirm before assembly.

Specs
Build Guide
What's Included
How To Mod

Dimensions
1. Case Diameter 34mm
2. Case Thickness 10.96mm (Solid Caseback) / 11.9mm (Sapphire Caseback)
3. Lug to Lug 43mm
4. Lug Width 20mm
Materials & Finish
1. Quality Swiss Production Quality, ISO 9001 Certified
2. Case Material 316L Stainless Steel
3. Crown Screw-down — fits SKX-style and Gen II crowns
4. Crystal Double-domed sapphire with clear anti-reflective coating (both surfaces)
5. Crystal Size 29.5mm x 1mm x 1.8mm
Compatibility
1. Movements TYPE M: NH34, NH35, NH36, NH38, NH70, NH71, NH72
2. Dials 28.5mm
3. Chapter Rings SKX013-spec (required, sold separately)
4. Hands NH movement compatible
5. Crowns SKX-style and Gen II
6. Bracelets 20mm lug — all Lucius Atelier bracelets compatible
Water Resistance
1. Solid & Sapphire Caseback 100m / 10 ATM
New to Seiko modding? Here's everything you'll need for a complete, functioning watch — in the order you'd actually assemble it.

What's already in this purchase:

The case body with pre-installed double-domed sapphire crystal, and your chosen caseback. That's the foundation. Everything below is what you'll add to make a wrist-ready watch.

The 5 parts you'll need for a complete watch:
1. Chapter ring — required first. The chapter ring seats the dial at the correct height; without it, the dial sits too low and the hands won't clear.
  (SKX013-spec — sold on a separate page. See the "sold separately" panel above for normal vs ultra thin guidance.)
  Browse compatible chapter rings

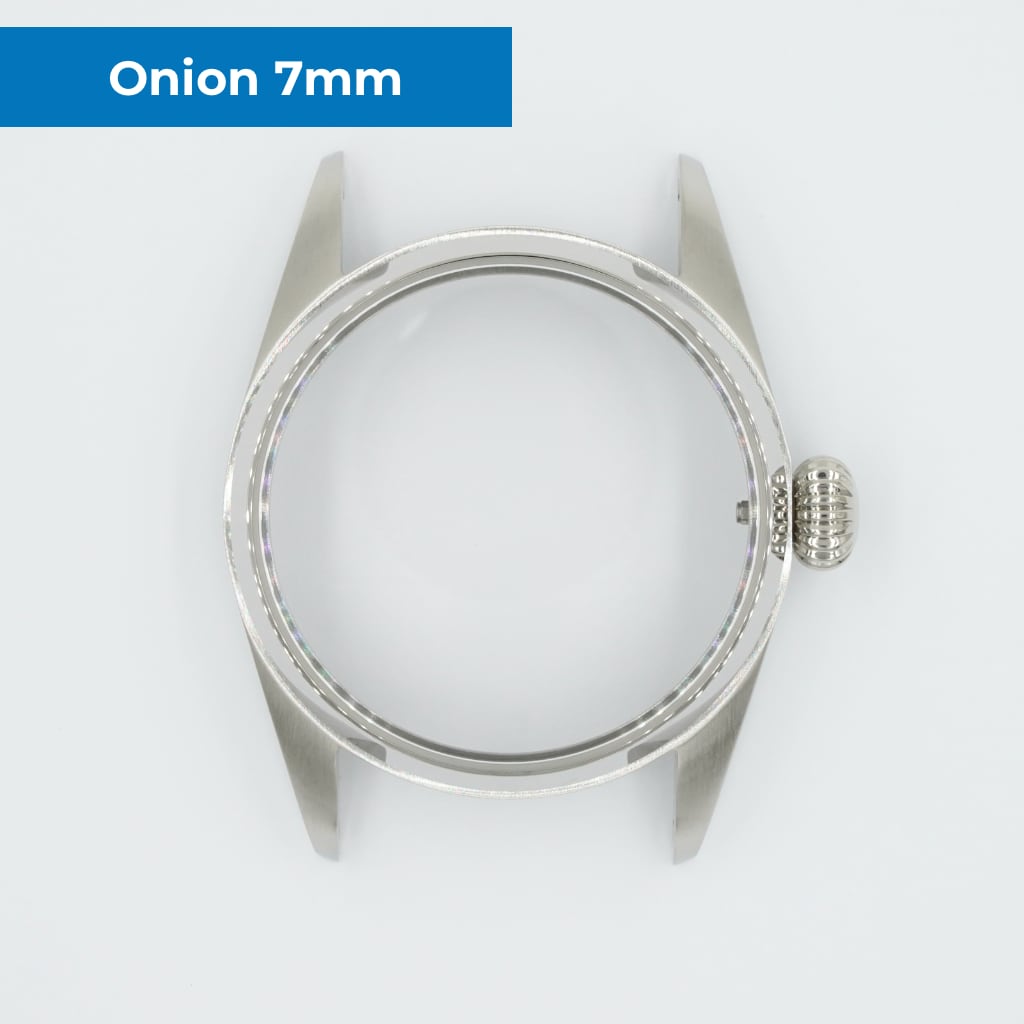

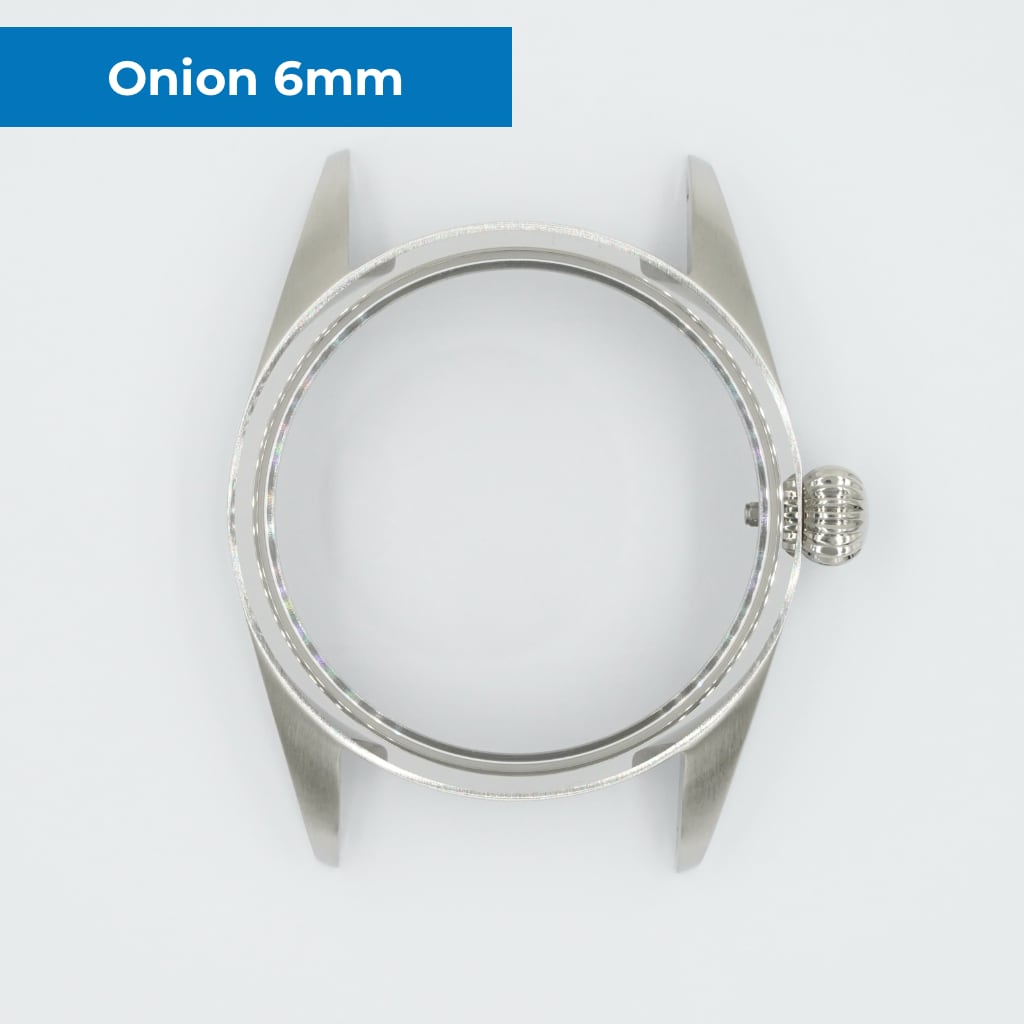

2. Crown — SKX-style (coin-edge, knurled, onion) or Gen II. Pick a style that matches the watch's character; a knurled crown leans tool-watch, an onion crown leans vintage pilot.
  (Required to add to cart. Selected from the dropdown above on this page.)
  Browse compatible crowns
3. Dial (28.5mm) — the face of the watch. The biggest aesthetic choice you'll make. Match it to your chosen movement (date / day+date / GMT / no-date dial). Pilot-style dials with cathedral or syringe hands are a natural pairing.
4. Hands — paired with your dial. Most modders match lume colour across both hands and dial markers (BGW9 white-blue, C3 green, etc.). For NH34 GMT builds, you'll also need a GMT hand.
5. Movement — NH34 (GMT), NH35 (date), NH36 (day+date), NH38 (no date), or source your own. The movement is the engine of the watch.
Optional finishing touches:
1. Bracelet or strap (20mm lug) — pilot-style builds traditionally pair with leather straps, and we offer shell cordovan and full-grain cowhide options. Lucius Atelier bracelets in oyster, jubilee, president, GS, Seikonaut, and Settimo also all fit a 20mm lug.
2. Decorated bridge + rotor (only visible with sapphire caseback) — replace the stock NH movement bridge and rotor with our Côtes de Genève decorated set, viewable through the sapphire caseback. Note: our bridges fit only our rotors (not OEM Seiko rotors), so they're chosen as a pair. Recommended for experienced modders only — or tick Assemble Watch below and we'll handle it.
Want it built for you?

Tick the Assemble Watch (+SGD $50) option above on this page and we'll handle the full build in our Singapore workshop — case fitting, movement seating, crown alignment, caseback press, function check, and decorated bridge + rotor installation if you've added those.

Heads up: assembled watches require 2–5 business days of workshop time before shipping.

Once your parts arrive, see the How To Mod tab for assembly tutorials.
1. 1x Watch Case Body (with pre-installed double-domed sapphire crystal)
2. 1x NH Caseback (Solid or Sapphire, per selection)
All photos of watches with modification parts are for illustration purposes only and are not included with the case purchase.

Can this case really take a GMT movement?

Yes. The Pilot 34mm is fully NH34-ready. Fitting a GMT caliber into a 34mm case at 10.96mm thickness is the engineering payoff of the Ultra Thin platform — and we're not aware of another modder-accessible case that combines a 34mm diameter with NH34 compatibility at this profile. Note the second-hand clearance requirement in the warning panel above.

Isn't 34mm too small for a men's watch?

It depends on what era of watchmaking you take your cues from. Through the 1950s and 1960s — the golden age of mechanical pilot watches — 34mm was a standard men's size. The IWC Mark 11, the original Heuer pilot watches, and most vintage Omega and Rolex dress models were 34–36mm. The Pilot 34mm draws from that tradition: it's deliberately proportional, not undersized. On wrists from 6 to 8 inches, it wears as an elegant, understated piece rather than a statement.

Which caseback should I choose?

The solid caseback (10.96mm) is the headline build — this is the case at its thinnest. Choose sapphire (under 12mm) if you want to display the NH movement and rotor through the back. Both are rated 100m / 10 ATM.

Why a double-domed sapphire?

The double-domed crystal is a vintage pilot watch detail — both the top and the underside curve, instead of a flat slab. The dome catches light differently across the face and adds visual depth to whatever dial you build behind it. The double-curvature also has a practical lineage: early aviation crystals were domed to shed water and resist impact. Ours is precision-cut and ships pre-installed at our workshop.

What's the difference between Type M and Type L?

Type M and Type L are Seiko's two factory hand-fitting versions of the NH series. Type L sits higher than Type M — about 0.4mm taller from base to second-hand pinion. Because of the tight clearance between hands and sapphire in Ultra Thin Edition cases, only Type M will fit. Confirm your movement type before ordering.

Do I need to remove the sapphire crystal to install the chapter ring?

No — and that's the whole point of us pre-installing the sapphire for you. The chapter ring sits on top of the dial inside the case, not under the crystal, so the crystal stays where it is throughout the build. (If you ever do need to remove the sapphire — for example, to replace it — that's a workshop job we handle for you, not an at-home step.)

Should I choose the normal or the ultra thin chapter ring?

The choice depends on your dial, not the case — both sizes fit every Ultra Thin Edition case. If your dial has applied (raised) indices, the ultra thin chapter ring is the better choice because its slimmer profile gives the indices clearance instead of resting on top of them. If your dial is flat-printed (no applied markers), either size works. When in doubt, the ultra thin chapter ring is the safer default because it works with both dial types.

What is an SKX013 chapter ring and why does it matter?

A specific size and spec used by Seiko in the SKX013 (discontinued 2019). The LA smaller-case lineup all uses this same spec, which means dozens of chapter ring designs work across every smaller case in the catalogue.

Will SKX007 dials fit?

Any 28.5mm dial will fit. Stock SKX007 dials may seat differently because the original SKX007 has a 4 o'clock crown position with offset dial feet, while Ultra Thin Edition cases are designed for 3 o'clock dial feet.

Does this case need a chapter ring?

Yes — every Ultra Thin Edition case requires an SKX013-spec chapter ring, sold separately. The chapter ring seats the dial at the correct height; without it, the dial drops and the hands will not clear properly.
