Discontinued
NH Movement Bridge - Côtes de Genève - Spiral Sunburst - Silver
$85 SGD
The Côtes de Genève motif is the best known of all the decorations adorning watch movements. Perhaps this is due to its name that initially seems both striking and somewhat strange, or possibly because it is so strongly present on movements. Whatever the case, this pattern traced on the smooth surfaces of mechanical (and indeed quartz) movements is a familiar sight on the watchmaking scene - to the point where one almost forgets that finishes are not a purely aesthetic element.
Here is a decorated NH movement bridge, Côtes de Genève in a Spiral Sunburst design.
With a sapphire caseback, it is all the reason to beautify the movement and improving the aesthetic.
[Installation Guide]
Here is a decorated NH movement bridge, Côtes de Genève in a Spiral Sunburst design.
With a sapphire caseback, it is all the reason to beautify the movement and improving the aesthetic.
[Installation Guide]
- Tools required: (i) 2-3mm flat screwdriver, (ii) 1.0-1.4mm flat screwdriver and (iii) tweezer.
- Remove existing rotor with a 2-3mm flat screwdriver.
- Unscrew and remove the two automatic train bridge screws on the NH movement bridge with a 1.0-1.4mm flat screwdriver (labelled in red 1 & 2 as show in the photo).

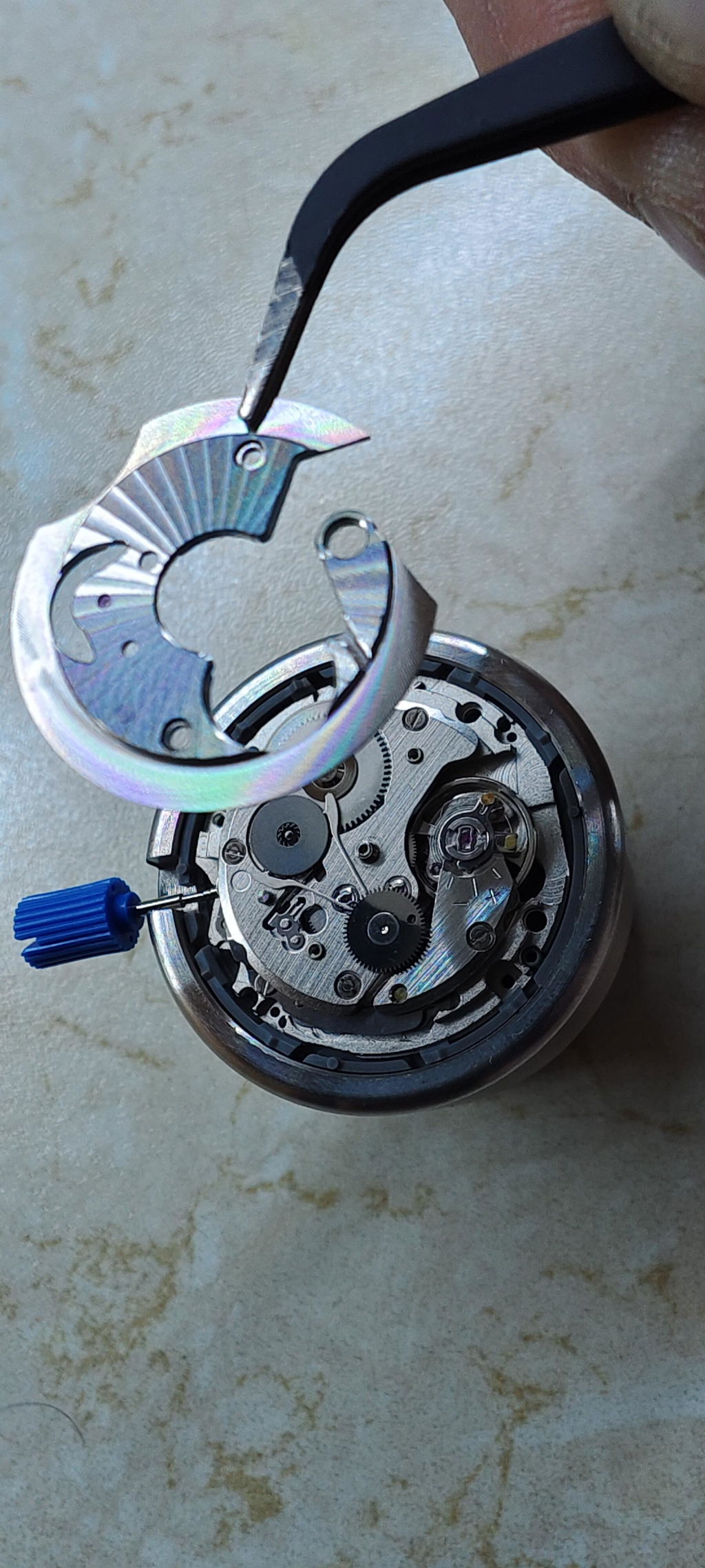

- Remove the automatic train bridge with a tweezer (circled in green as show in the photo).

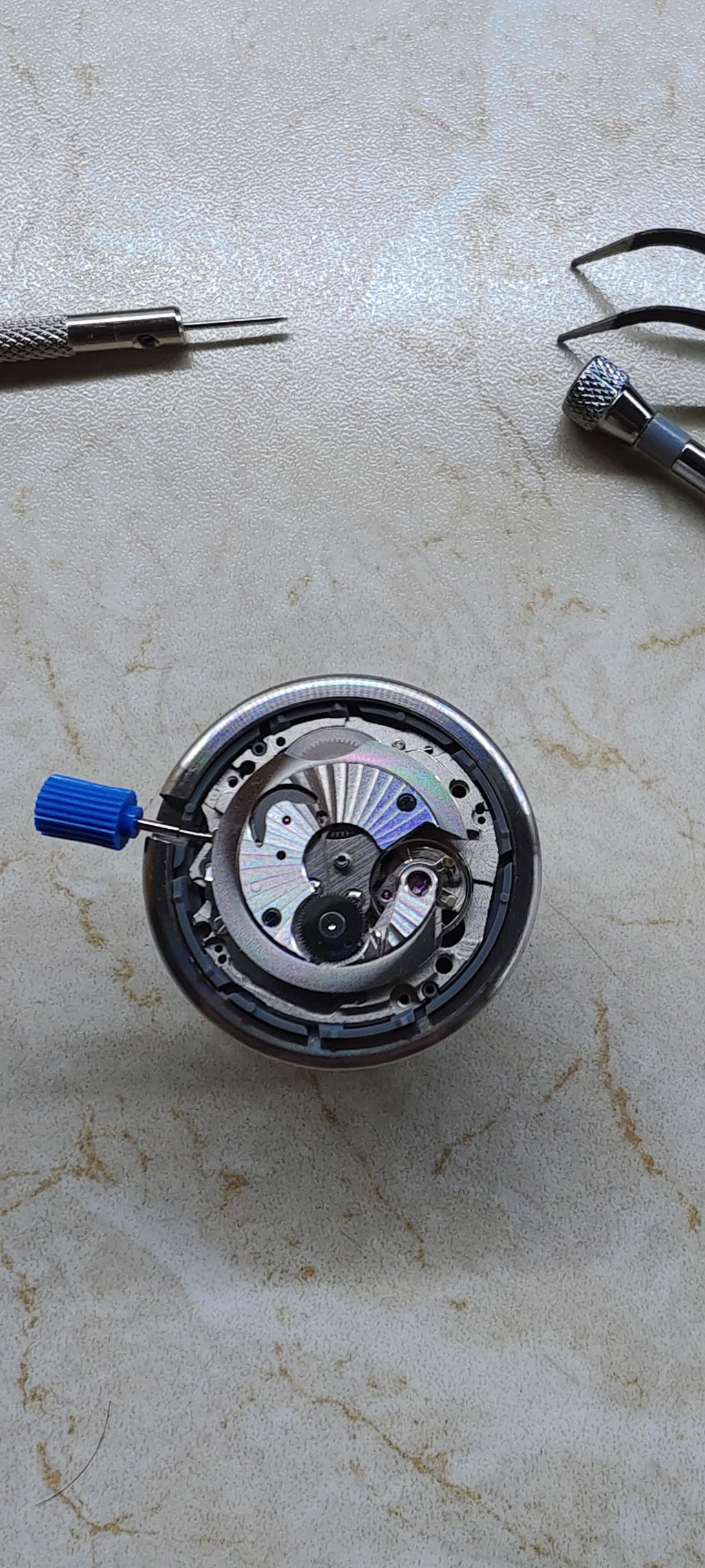

- Replace with decorated bridge. Affixed by gently screwing and tighten the two blue screws in place.

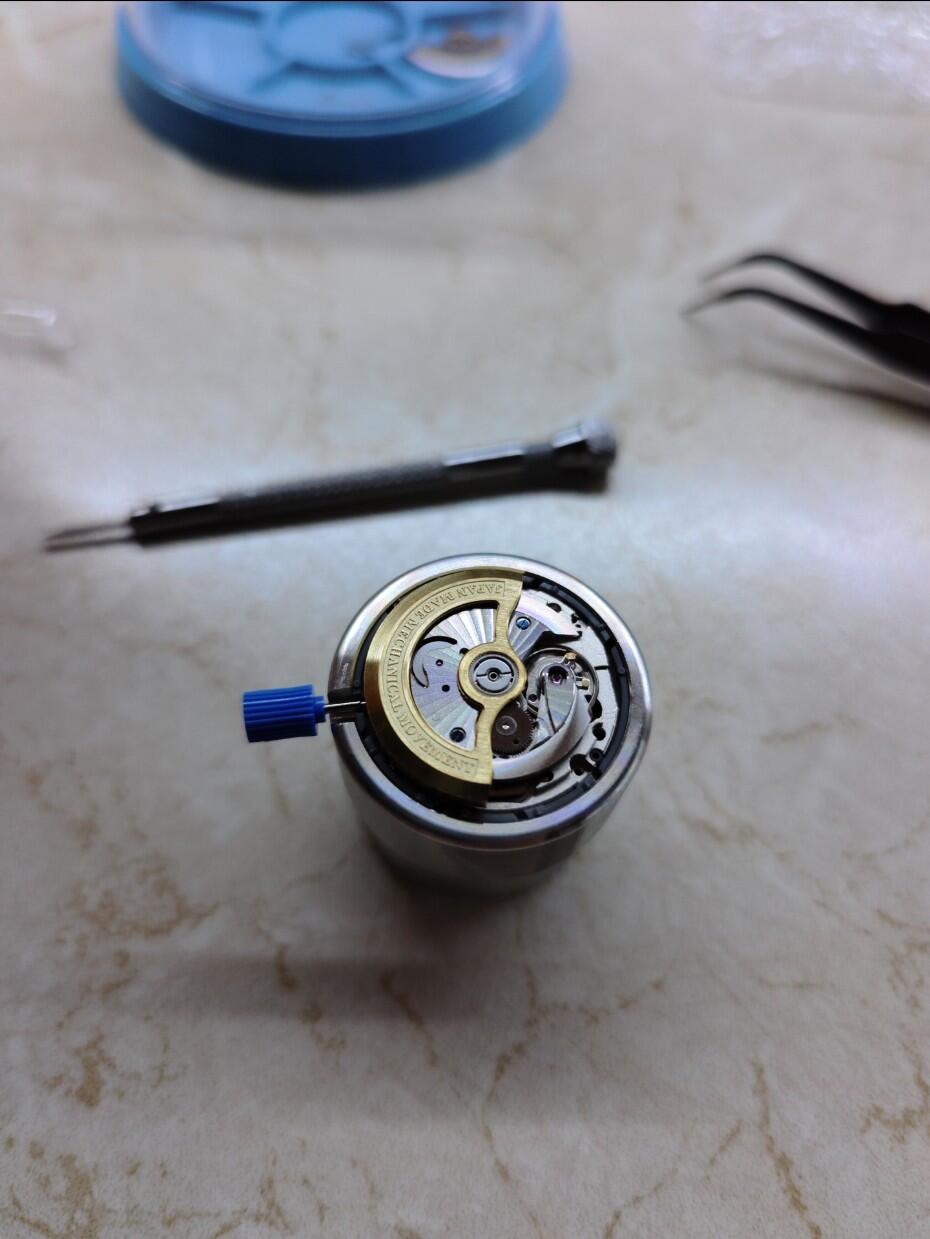

- Lastly, position and screw down the rotor.
Note: Removable and placement of automatic train bridge have to be done carefully with a steady hand to avoid misaligning the pawl lever (aka magic lever) and popping out the second reduction wheel (the wheel the magic lever clutches onto). The automatic train bridge screws are 1mm in size! Therefore, please ensure you take great care when working with these screws and avoid losing them. Due to difficulty working with a movement bridge, it is ONLY recommended for professional watchmakers and highly skilled/experienced modders with great level of finesse.
Made exclusively for us with quality assurance by ISO 9001 Certified manufacturers.
| FREE WORLDWIDE SHIPPING |
-
- Quality Swiss Production Quality, ISO 9001 Certified
- Colour Silver
- Fit Movements NH34, NH35, NH36, NH37, NH38, NH39, NH70, NH71, NH72
-
Our movement bridges have been optimised to fit only our full range of rotors selection. Importantly, they are incompatible with OEM NH rotor.
-
- 1x NH Movement Bridge
- 2x Blue Screws
All photos of watches with modification parts are for illustration purposes only and are not included with modification parts purchased.
-
Recommended Mods With:
This movement bridge dramatically enhances NH35 movements with its Côtes de Genève spiral sunburst design. Customers said it "completely changes how the movement looks" and "far exceeds expectations." The quality is excellent, installation is simple, and it adds a premium finishing touch to dress watch builds with clear casebacks.
- Perfect fit for my dress watch build. Will definitely be upgrading all future builds!
- Far exceeds expectations. Incredibly impressed by the quality. Looks prettier in person.
- Looks beautiful and quality is great! Installation was quite simple.
Build (positive)Movement (positive)Installation (positive)Bridge (positive)Quality (positive)
B
The build quality and the looks are very good I recommend it!
A

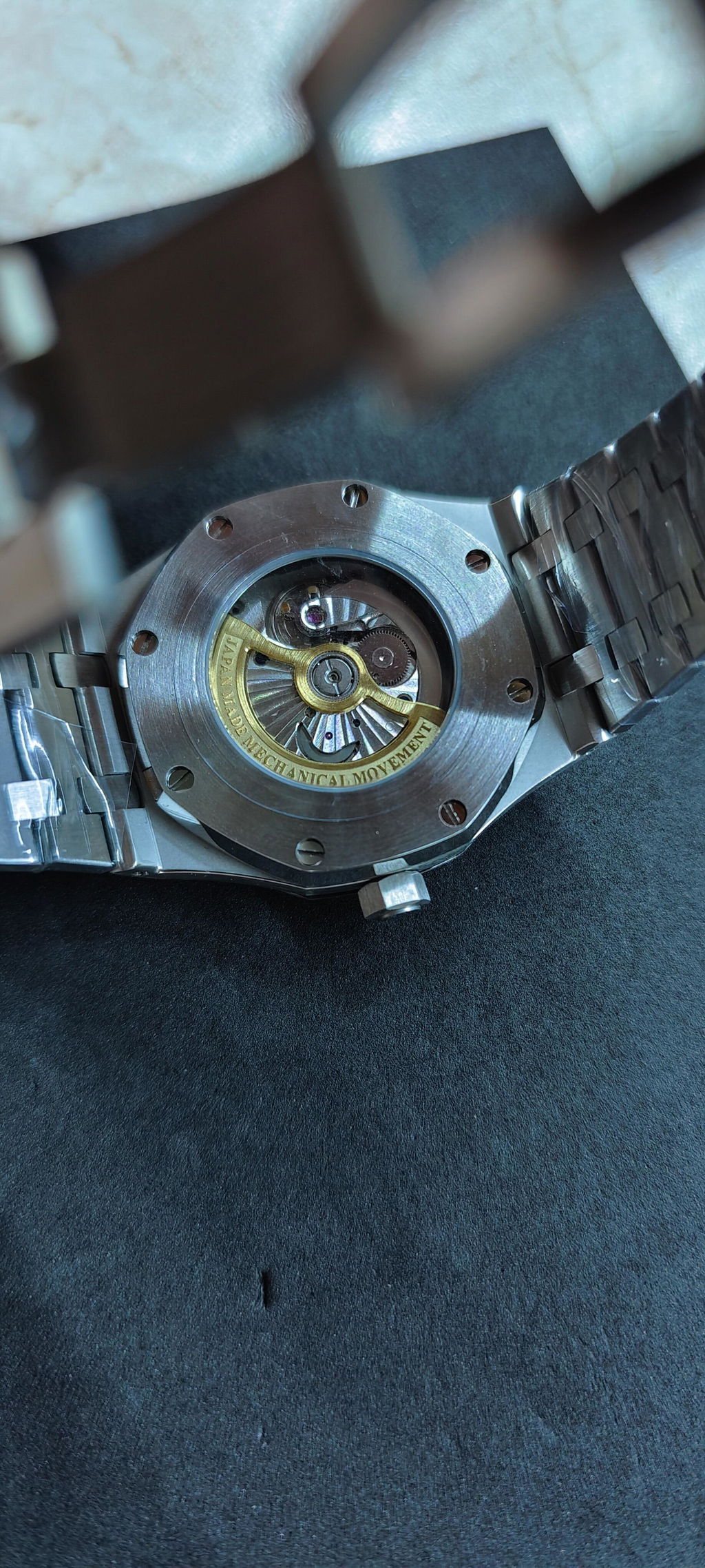

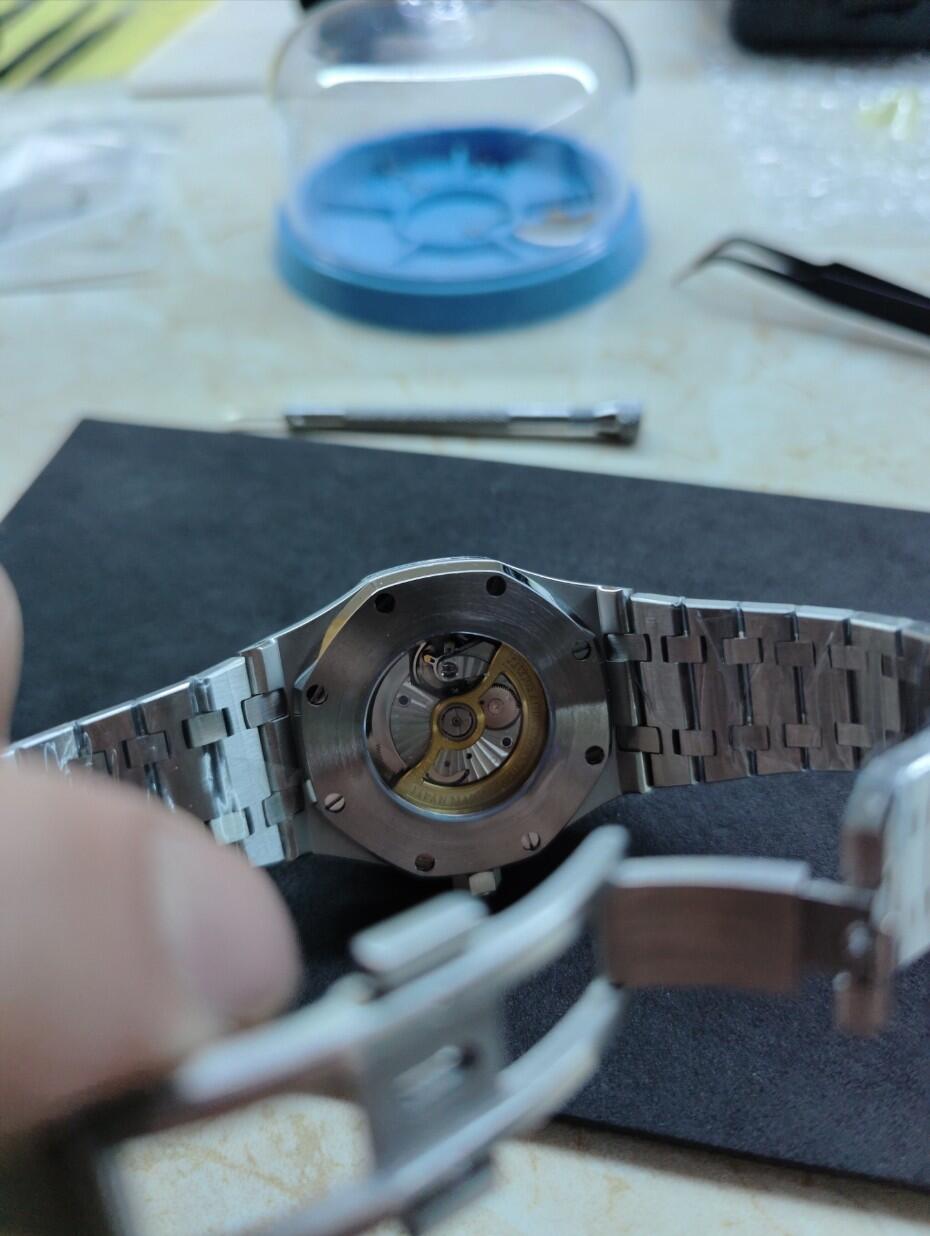

Using this mod part for: SRPE (full aftermarket parts)
It was my first time using a movement bridge decoration, and I was afraid to destroy the movement but everything went perfectly fine.
Delivery was fast and inexpensive. I highly appreciate the hand written card in the box. It was my first order, but make sure I'll order again.
T

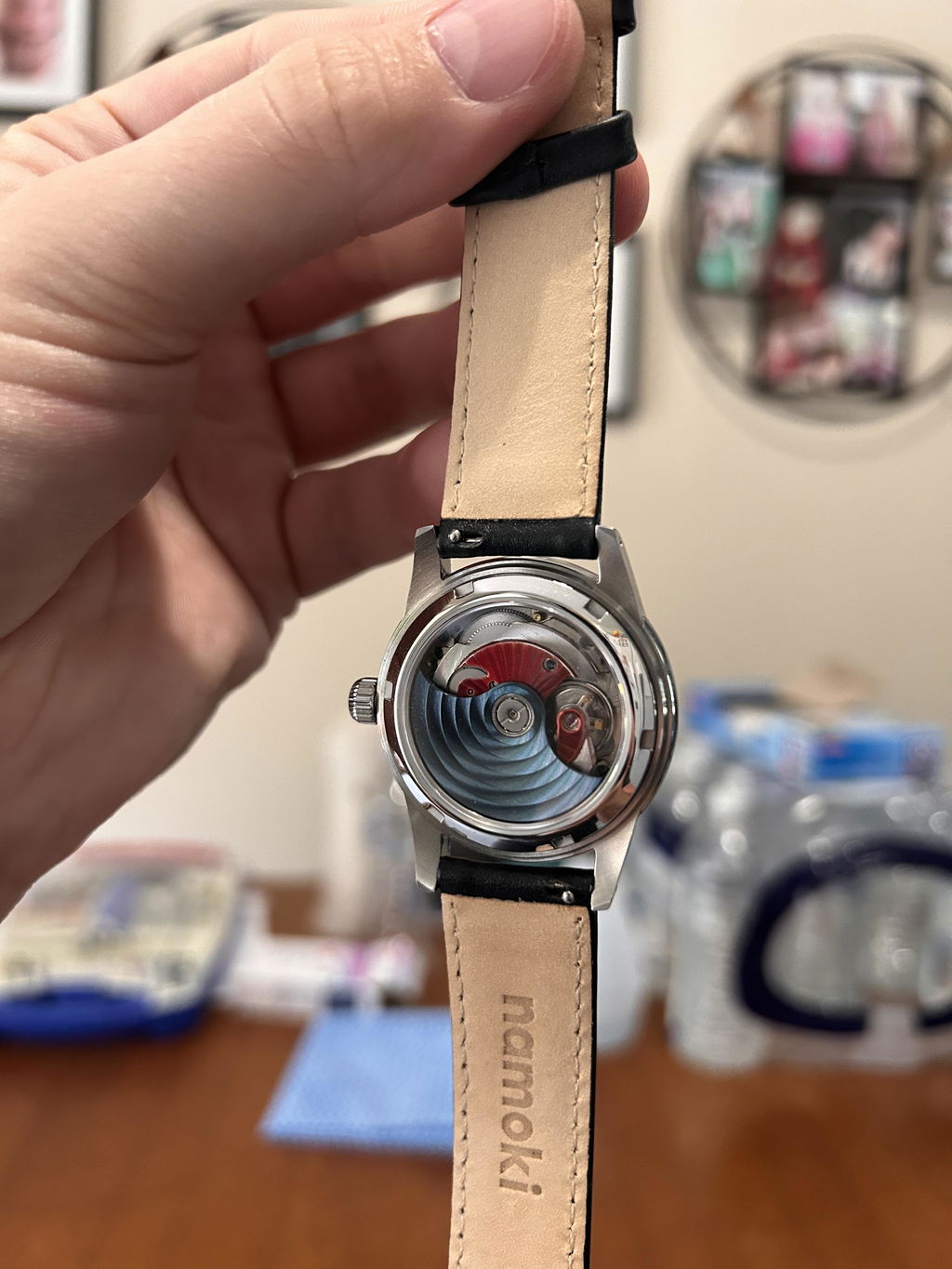

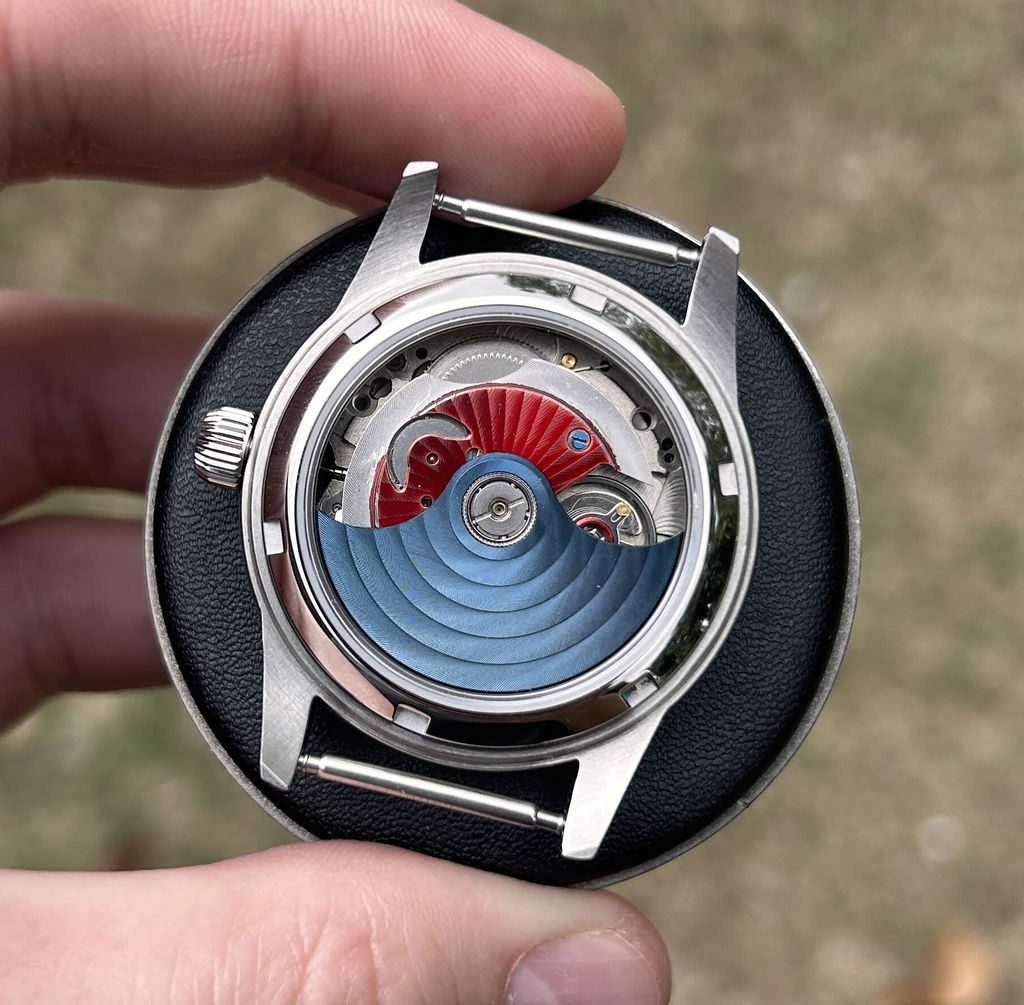

Using this mod part for: NMK940 aftermarket case from namokimods
The movement bridge far exceeds my expectations. I’m incredibly impressed by the quality. This movement looks much prettier and thinner in person. The pictures don’t do it justice.
G
Using this mod part for: GS Case 39mm

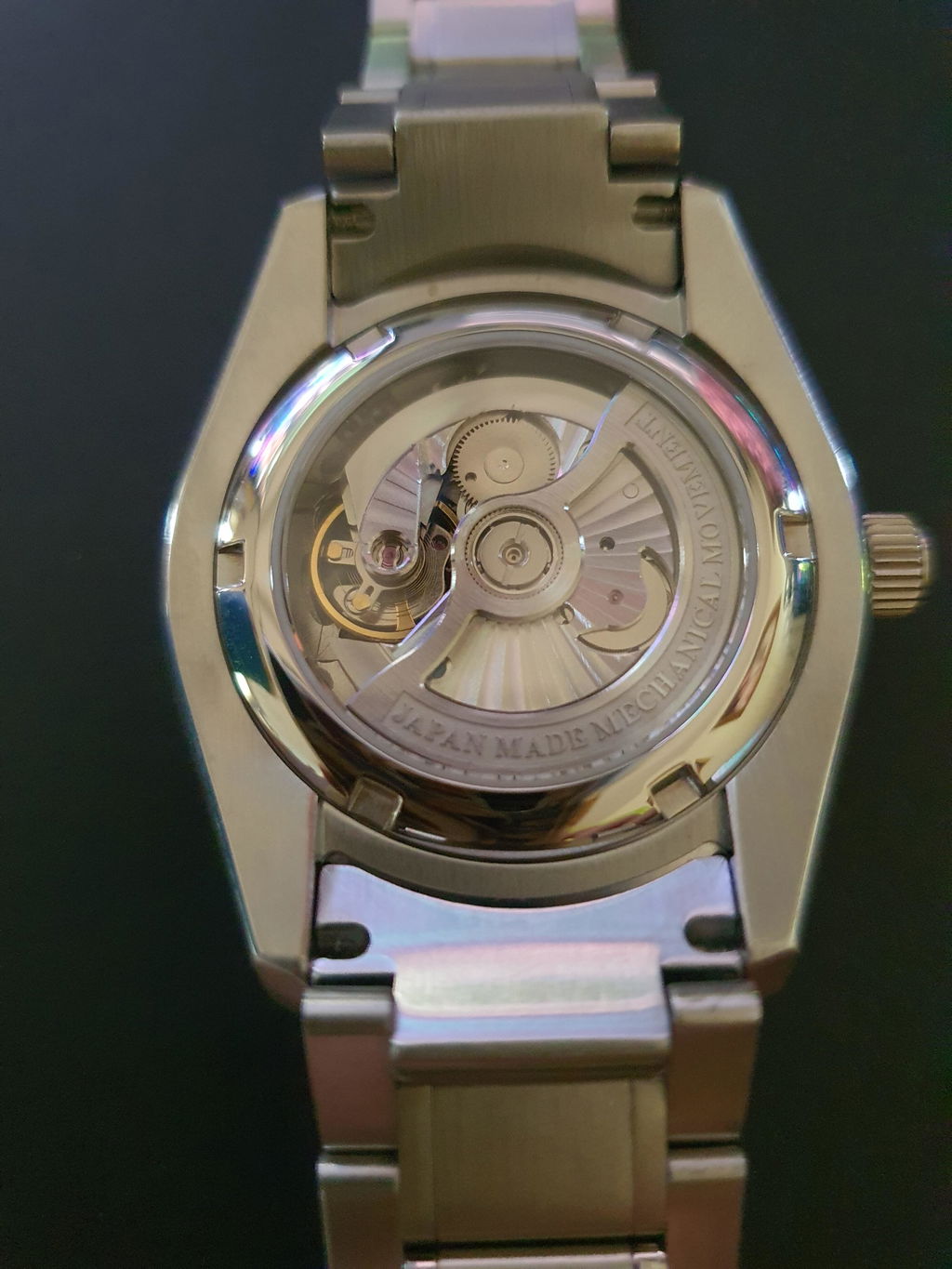

This is more than a simple decorated bridge replacement, and it does add a nice finishing touch to a build with a clear caseback.
M
Using this mod part for: SKX007, NH34, Namoki case, with custom dial
The bridges definitely improve the look of a standard movement, and the skeletonized rotors add to the appeal and allow you to see the bridge. For even greater effect, I’d like to see either spiral sunburst rotor or a skeletonized rotor with the spiral sunburst effect. It would be a nice complement to the bridge.
B
This paired with a new rotor was the perfect fit for my dress watch build using the NH35. I will definitely be upgrading all the bridges on any future build!
M
Using this mod part for: Aftermarket Nautilus style case
Looks beautiful and quality is great! The installation was quite simple and it is a great addition to a build.
E
Using this mod part for: GS Diver 36mm
Beautiful touch to an otherwise ordinary looking movement.
L
Using this mod part for: Aftermarket omega style watch
The rotors and bridges I gout are beautiful and will add that awesome touch to the next dress watch build's I have ony bench the clients I am building these watches for wanted the best build I could do and the most unique builds I could come up with and I looked no further than Lucius Atelier for these fine watch parts if you want to finish your watch in a all out build I highly recommend these parts
L
Is there any chance you will have this back in stock soon?
Hi Logan,
Thank you for expressing interest in our mod parts!
This particular movement bridge — along with the rest of our bridge series — is being discontinued, and we won’t be restocking it in the future. If there are any remaining designs or variants you’re interested in, I’d recommend picking them up soon before they’re gone for good.
Let me know if you have any other questions!
Best regards,
Adriel
Lucius Atelier | SEIKO Mod Parts
E
What's the difference between this and the regular Sunburst bridge? I can't tell by the pictures
Hello ERIC!
Thanks for expressing interest in our mod parts!
>> What's the difference between this and the regular Sunburst bridge? I can't tell by the pictures
The spiral sunburst is a little spiral. The difference is subtle that they can be both be named as the same thing.
Hope this helps. Let me know if you have anymore questions.
Cheers,
Adriel
