    Home / Discontinued Collection / NH Movement Bridge - Côtes de Genève - Circular - Blue
    NH Movement Bridge - Côtes de Genève - Circular - Blue - - - - Lucius Atelier - Swiss Quality Seiko Watch Mod Parts
    NH Movement Bridge - Côtes de Genève - Circular - Blue - - - - Lucius Atelier - Swiss Quality Seiko Watch Mod Parts
    NH Movement Bridge - Côtes de Genève - Circular - Blue - - - - Lucius Atelier - Swiss Quality Seiko Watch Mod Parts
    NH Movement Bridge - Côtes de Genève - Circular - Blue - - - - Lucius Atelier - Swiss Quality Seiko Watch Mod Parts
    NH Movement Bridge - Côtes de Genève - Circular - Blue - - - - Lucius Atelier - Swiss Quality Seiko Watch Mod Parts
    NH Movement Bridge - Côtes de Genève - Circular - Blue - - - - Lucius Atelier - Swiss Quality Seiko Watch Mod Parts
    Discontinued

    NH Movement Bridge - Côtes de Genève - Circular - Blue

    $85 SGD
    Worldwide
    Delivery         Express
    2–4 Days         Replies In
    1 Day         30-Day
    Returns
    The Côtes de Genève motif is the best known of all the decorations adorning watch movements. Perhaps this is due to its name that initially seems both striking and somewhat strange, or possibly because it is so strongly present on movements. Whatever the case, this pattern traced on the smooth surfaces of mechanical (and indeed quartz) movements is a familiar sight on the watchmaking scene - to the point where one almost forgets that finishes are not a purely aesthetic element.

    Here is a decorated NH movement bridge, Côtes de Genève in a Circular design.

    With a sapphire caseback, it is all the reason to beautify the movement and improving the aesthetic.

    [Installation Guide]
    1. Tools required: (i) 2-3mm flat screwdriver, (ii) 1.0-1.4mm flat screwdriver and (iii) tweezer.
    2. Remove existing rotor with a 2-3mm flat screwdriver.
    3. Unscrew and remove the two automatic train bridge screws on the NH movement bridge with a 1.0-1.4mm flat screwdriver (labelled in red 1 & 2 as show in the photo).
    4. Remove the automatic train bridge with a tweezer (circled in green as show in the photo).
    5. Replace with decorated bridge. Affixed by gently screwing and tighten the two blue screws in place.
    6. Lastly, position and screw down the rotor.

    Note: Removable and placement of automatic train bridge have to be done carefully with a steady hand to avoid misaligning the pawl lever (aka magic lever) and popping out the second reduction wheel (the wheel the magic lever clutches onto). The automatic train bridge screws are 1mm in size! Therefore, please ensure you take great care when working with these screws and avoid losing them. Due to difficulty working with a movement bridge, it is ONLY recommended for professional watchmakers and highly skilled/experienced modders with great level of finesse.

    Made exclusively for us with quality assurance by ISO 9001 Certified manufacturers.

    FREE WORLDWIDE SHIPPING
      1. Quality Swiss Production Quality, ISO 9001 Certified
      2. Colour Blue
      3. Fit Movements NH34, NH35, NH36, NH37, NH38, NH39, NH70, NH71, NH72

    • Our movement bridges have been optimised to fit only our full range of rotors selection. Importantly, they are incompatible with OEM NH rotor.

      1. 1x NH Movement Bridge
      2. 2x Blue Screws

      All photos of watches with modification parts are for illustration purposes only and are not included with modification parts purchased.

    • Recommended Mods With:

      1. NH Movements
    • 5 stars: 3 (100%)
    • 4 stars: 0 (0%)
    • 3 stars: 0 (0%)
    • 2 stars: 0 (0%)
    • 1 star: 0 (0%)
    A
    Anonymous (Martinsburg, US)
    A little extra flare

    Adds a touch of extra customization to your watch!

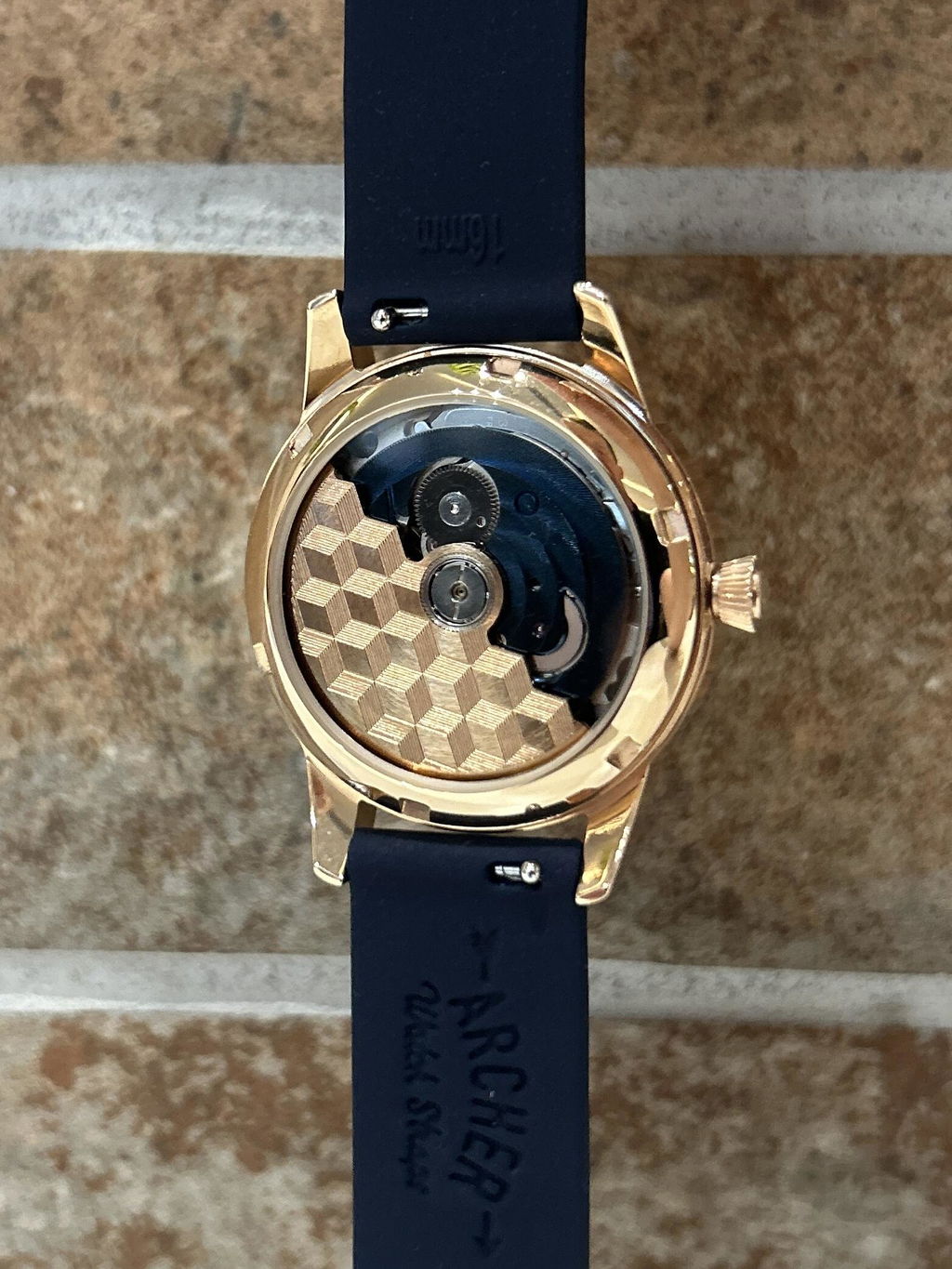

    Anonymous review photo
    T
    Tyler M. (Brisbane, AU)
    Using this mod part for: 33mm nh35 aftermarket case
    Million dollar upgrade!!

    I couldn't be happier! This movement bridge takes the humble nh35 movement to a whole other level!! If you haven't tried it what are you waiting for?? You won't regret the upgrade and you'll probably find yourself staring at it for hours at a time.

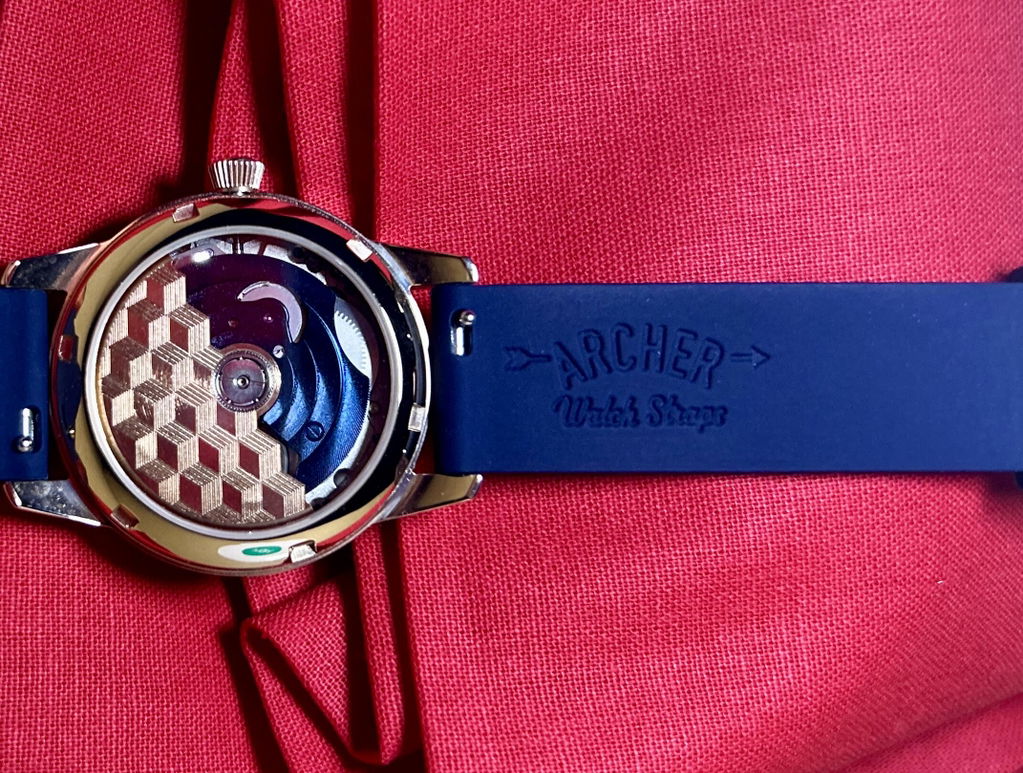

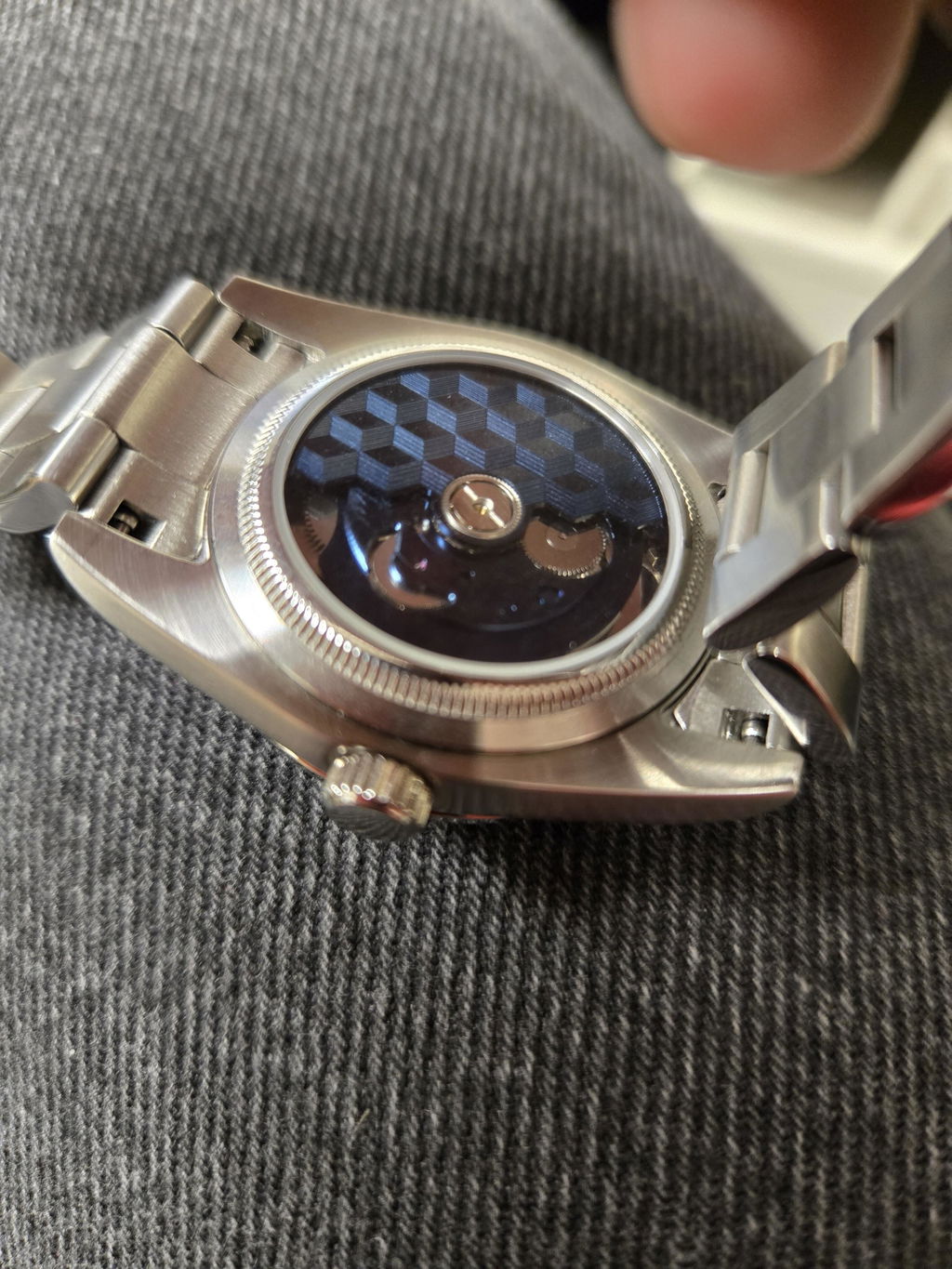

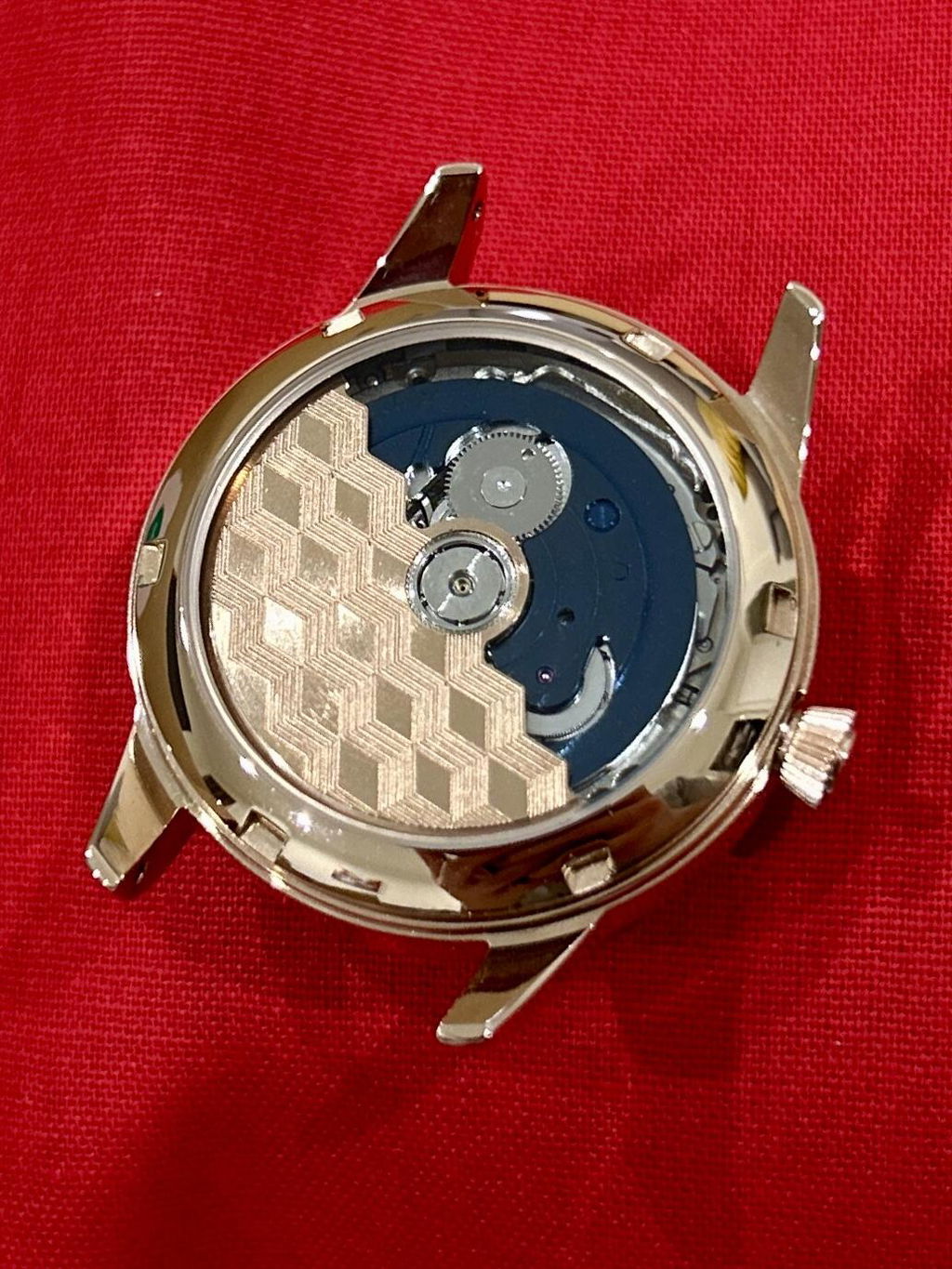

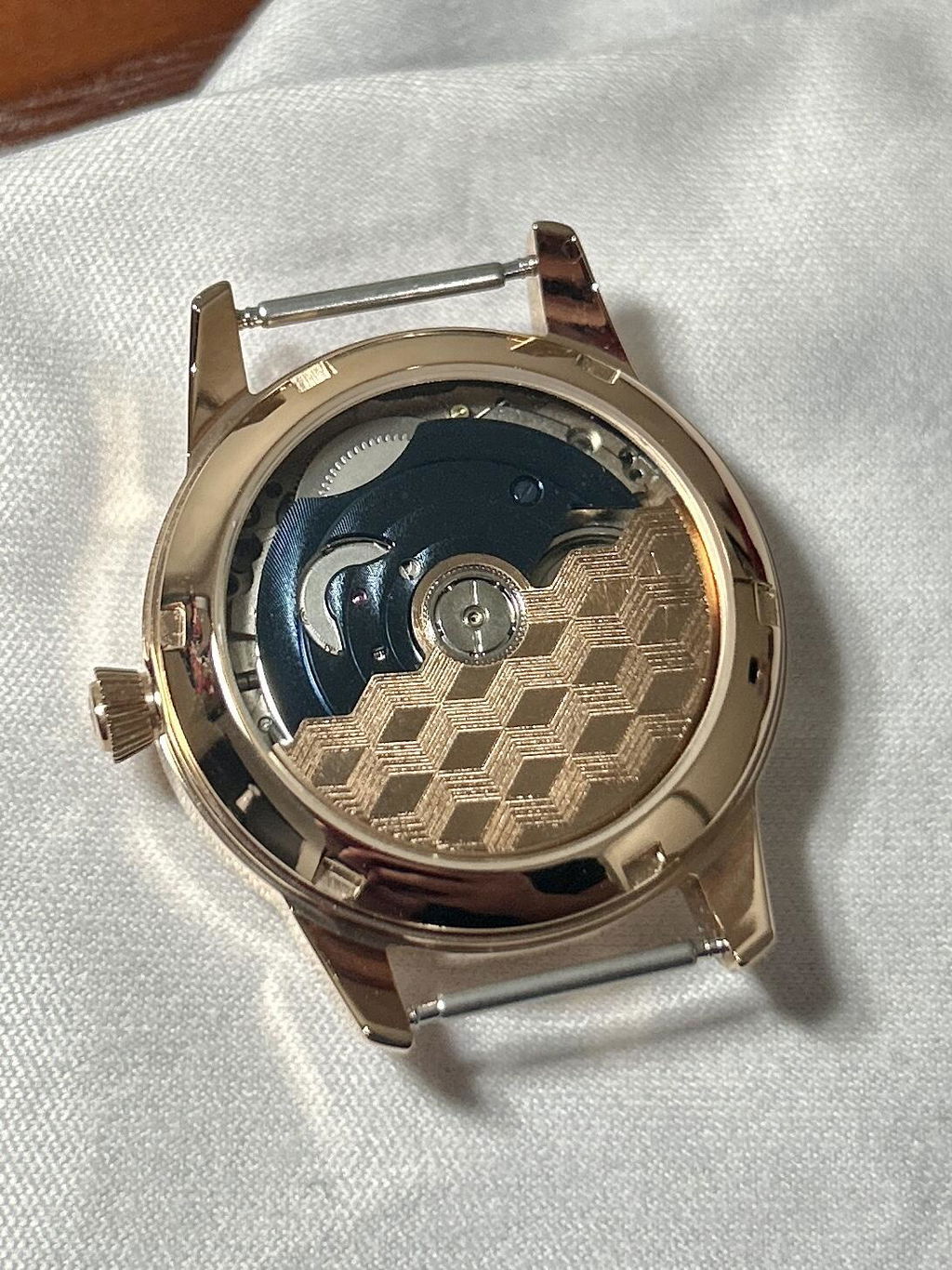

    Tyler M. review photo Tyler M. review photo Tyler M. review photo Tyler M. review photo
    T
    Thomas W. (Atlanta, US)
    Great quality

    Great quality product and shipping was awesome!

    c
    chro F.

    Will a new ver be released for Bridge that has been discontinued or sold out?

    Adriel from LuciusAtelier.com

    Hi Suho,

    Thanks for expressing interest in our mod parts!

    There won’t be a new version — we’re discontinuing all bridges and rotors once they sell out, with no plans for future releases.

    Hope this helps! Let me know if you have any other questions.

    Best regards,
    Adriel
    Lucius Atelier | SEIKO Mod Parts

    K
    Ken

    When is the BLUE back in stock to purchase?
    Thanks

    Adriel from LuciusAtelier.com

    Hi Ken,

    Thank you for expressing interest in our mod parts!

    The NH Movement Bridge – Côtes de Genève – Circular – Blue has been discontinued and will unfortunately not be restocked.

    If you’re exploring other movement decoration options, feel free to reach out — I’d be happy to help with suggestions.

    Best regards,
    Adriel
    Lucius Atelier | SEIKO Mod Parts

    K
    Kyle

    How closely should the new bridge fit to the movement? Can you provide a photo showing fit from the side?

    Adriel from LuciusAtelier.com

    Hi Kyle,

    The bridge should sit flush with the movement, with no gaps when properly installed. Unfortunately, we don’t have a side-view photo available.

    Installing the automatic train bridge requires a steady hand and careful alignment to avoid misaligning the pawl lever (magic lever) or dislodging the second reduction wheel. As mentioned on the product page, this is a high-precision component, and working with it requires a great level of finesse and watchmaker expertise.

    If you’re experiencing difficulty with the fitment, I’d recommend double-checking that all components are seated correctly before securing the screws. The screws themselves are very small (1mm in size), so please take care when handling them.

    Let me know if I can assist further!

    Best regards,
    Adriel
    Lucius Atelier | SEIKO Mod Parts
